Android Fingerprint Scanner

Android Fingerprint Scanner supports the Android operating system and provides complete development package for secondary development and integration.

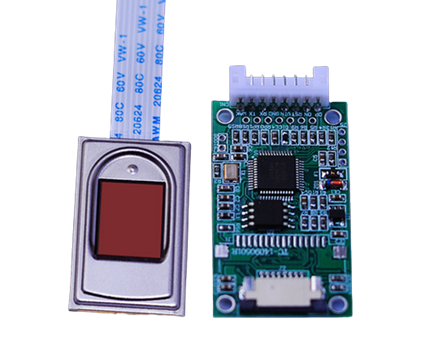

Android fingerprint scanner ID1011 is composed of ID811 fingerprint recognition algorithm board and capacitive fingerprint sensor, which has the advantages of good experience, wear resistance, corrosion resistance, anti-static and so on. ID1011 runs the IDFinger fingerprint recognition algorithm independently developed by IDWorld, which is widely praised in the industry, and its performance indicators are in the forefront of similar products in the market.


project description

Model: IDWD1011

CPU: ID811

Fingerprint Collector: Capacitive Fingerprint Sensor

Fingerprint registration capacity: The default is 500 pieces, and it can be expanded to 3000 pieces

False Recognition Rate (FAR): < 0.001 % (Security Level is 3)

Authenticity rejection rate (FRR): < 2% (Security Level is 3)

Alignment method: 1:N and 1:1 alignment

Fingerprint template size: 498 bytes Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction time < 0.45 seconds, 1:N comparison time < 0.8 seconds

Communication interface: UART, 3.3V-TTL level

Baud rate: 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current: less than 40mA

Working environment: Working temperature: -10℃ - 60℃ Relative humidity: 20% – 80%

Android fingerprint scanner ID1011 is widely used in: smart door locks, safes, luggage locks, padlocks, fingerprint U disk/key, access control attendance and other industries.


Android Fingerprint Scanner


Product specifications, communication instruction set, Demo and source code
