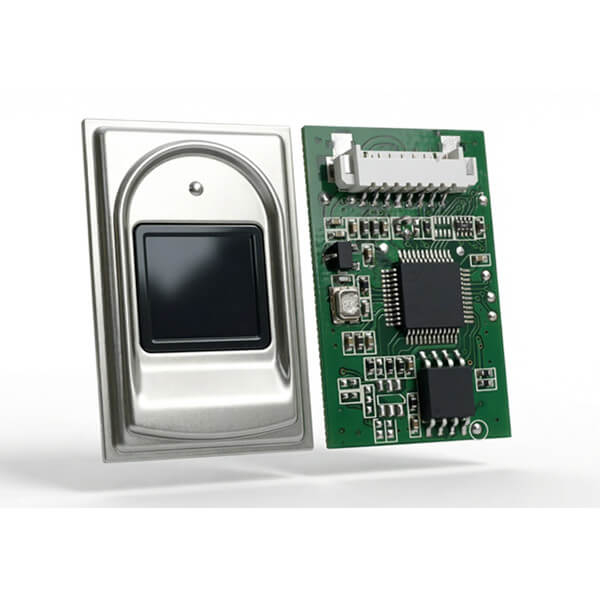

The fingerprint scanner ID1019B is a semiconductor fingerprint module developed specifically for various integrated devices. It combines a Cortex M4 Core processor with a semiconductor fingerprint sensor and supports the IDFingeV6.0 fingerprint algorithm. The product supports Windows, Android and other systems and can be easily embedded into various terminals.
Clear imaging and excellent image quality
Good image quality for dry, wet and rough fingers, and for a wide range of users
Compact size for easy integration into various terminals
Support Windows, Android and other operating system development
The larger the collection area, the higher the recognition rate
Capacitive fingerprint sensor
508 DPI resolution for sharper images
Uart interface, easy development
Strong antistatic ability
Product Type: ID1019B
Sensor type: Capacitive
Effective capture window: 9.6*9.6mm
Image size: 192*192pixel
Image resolution: 508dpi
Aberration rate: Less than1%
Gray scale: 256level
False recognition rate: Less than0.0001%
Rejection rate: Less than2%
Template size: Less than 448 bytes
Operating system: Windows/Android
Operating voltage: 3.3V
Operating current: Less than 40mA
Operating temperature: -20 °C ~ 55 °C
Operating humidity: 20% - 90% R.H
Communication method: UART
