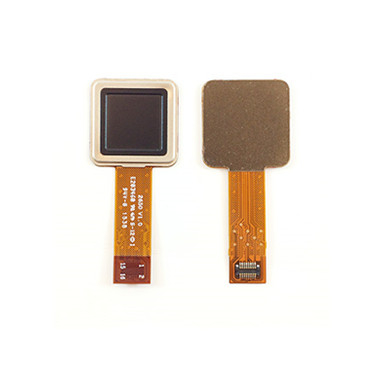

The fingerprint sensor arduino ID1019 uses the standard UART protocol, is highly integrated and provides complete development material with fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (including 1:1 and 1:N), template deletion and other functions. It is a high performance fingerprint recognition module developed and designed by IDWorld. Combining the new generation of IDFinger high performance fingerprint core algorithm and high speed CPU, it has high anti-counterfeiting performance, fast acquisition speed, strong adaptability and simple development etc. The ID1019 communication protocol is simple and reliable, only need to cooperate with simple peripheral circuit to embed this fingerprint module into your intelligent products, so that your products have powerful fingerprint identification capability.
Parameters
Item: Description
Model: ID1019
CPU: ID809
Sensor type: Capacitive
Effective capture window: 9.6*9.6mm
Image size: 192*192pixel
Image resolution: 508dpi
Fingerprint registration capacity: 170/500/1000 pcs.
False Acceptance Rate (FAR): < 0.001 % (Security Level 3)
Rejection rate (FRR): < 2 % (Security Level 3)
Fingerprint template size: 448 bytes Byte
Security level setting: Level 1 to Level 5 configurable, factory set value: Level 3
Fingerprint registration time: < 3 seconds
Fingerprint matching method: 1:1 / 1:N
Matching time: < 0.2 sec (1:1), < 0.5 sec (1:170)
Communication interface: UART, 3.3V-TTL level
Baud rate: 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps
Operating voltage: DC3.3V±10%
Operating current: <40mA
Operating environment: Operating temperature: -10℃ - 60℃ Relative humidity: 20%- 80%
Operating humidity: ＜90% R.H (non-condensing)
Storage humidity: 20- 93% R.H
Support system: Windows; Android; Embedded
The fingerprint sensor arduino ID1019 is suitable for fingerprint locks, safes, fingerprint access control attendance machines, fingerprint collectors, fingerprint vanity cases, fingerprint safes, fingerprint luggage, fingerprint mobile payments, etc.
