Capacitive fingerprint sensor/scanner

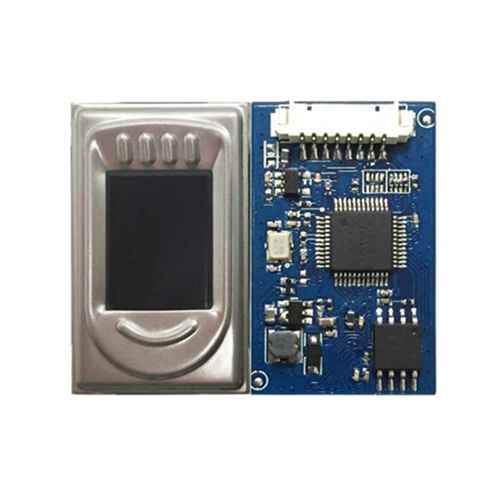

Capacitive fingerprint sensor/scanner ID-TSC2, high speed, fast recognition and high stability. Using the high-performance Cortex-M4 core master control, combined with the high-security IDFingerV6.0 fingerprint algorithm, equipped with a semiconductor fingerprint sensor, intelligent integration with fingerprint entry, image processing, template generation, template storage, fingerprint comparison and search functions The module provides UART communication mode and a complete supporting data manual, which is easy to use. It does not need to understand the internal structure and operation of the fingerprint technology module, and only simple instructions can complete the corresponding operation. Specializing in fingerprint product manufacturers and application integration manufacturers to provide standard secondary development fingerprint components, fast and convenient integration of applications.

Features

Small size, easy to embed in all kinds of terminal equipment

Clear imaging and excellent image quality

Touch wake-up function

With embedded LED design

Dry, wet and rough fingers all have better imaging quality and are widely used by the population

Supports the development of Windows, Android and other operating systems

Specifications

Product model: ID-TSC2

CPU: ID808

Fingerprint capacity: 500/1700/3000

Sensor type: capacitive

Effective collection window: 14.4*10.4mm

Image size: 288*208pixel

Image resolution: 508dpi

Processing speed: 1:N comparison time (500 pieces) <0.8 second

Comparison method: 1:N and 1:1 comparison

False recognition rate (FAR): <0.001% (Security Level is 3)

False Rejection Rate (FRR): <2% (Security Level is 3)

Communication interface: UART, 3.3V-TTL level

Baud rate: The baud rate is 9600--115200 (bps) Factory setting: 115200bps

Template size: 498 bytes

Operating System: Windows/Android

Working voltage: 3.3V

Working current: <40mA

Working temperature: -20 °C ~ 55 °C

Working humidity: 20%-90% R.H

Applications

ID-TSC2 is widely used in the development of fingerprint locks, fingerprint safes, fingerprint access control, fingerprint attendance and other scenarios.

Photos

Packing list

1.25mm-7PIN cable

Capacitive fingerprint sensor/scanner
