fingerprint scanner for attendance

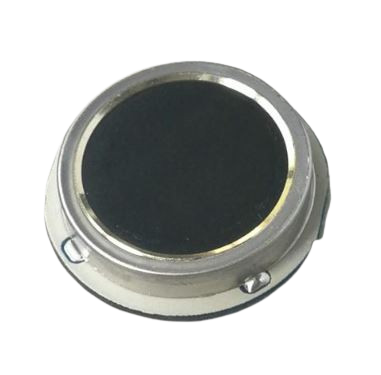

The fingerprint scanner for attendance ID1019R is a semiconductor fingerprint comparison module specially developed for various integrated devices. The imaging is clear, the image quality is excellent, and the dry, wet and rough fingers have good imaging quality, and it is widely used by people. ID1019R supports Windows, Android and other system development, which is convenient to be embedded in various terminal devices.

Specifications

Sensor Type - Capacitive

Effective Image Size - 9.6mm x 9.6mm

Image Resolution - 508 dpi

Image size - 192x192 pixels

Fingerprint recognition time-Less than0.1 seconds (1:1), Less than0.5 seconds (1:N, 100 pieces)

Fingerprint user capacity - 500ID

Fingerprint Enrollment Time - Less than 3 seconds

Fingerprint comparison method-1:1 / 1:N

Authentic rejection rate (FRR)-Less than2%

False Recognition Rate (FAR)-Less than0.001%

Communication interface-TTL

Supported Systems - Windows; Android; Embedded

Working voltage - DC 3.3

Operating current - Less than 40 mA

Operating temperature -10°C～55°C

Working humidity-20-93% R.H

Working humidity-＜90%R.H (non-condensing)

Storage humidity -20～93% R.H

Applications

ID1019R is widely used in fingerprint locks, fingerprint safes, fingerprint access control and fingerprint attendance, etc.

Apparent dimension

Packing list

1.25mm-7PIN cable

Fingerprint scanner for attendance
