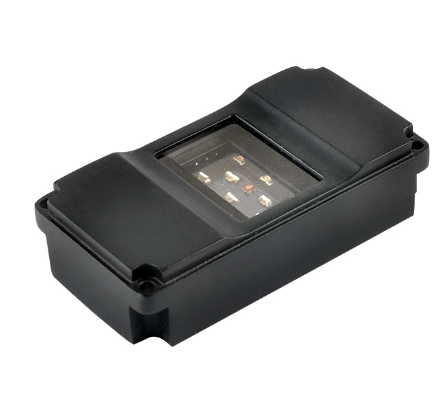

ISO Certified Fingerprint Scanner

ISO Certified Fingerprint Scanner ID400 is an integrated fingerprint processing module that integrates optical path and fingerprint processing. It features small size, low power consumption, simple interface, high reliability, and good adaptability to wet and dry fingers. ID400 is an optical fingerprint module in line with international standards such as ISO and ANSI, using high-definition optical fingerprint imaging technology, fingerprint acquisition imaging effect is good, acquisition speed, dry and wet finger adaptability. ID400 can be flexibly embedded in a wide range of hardware terminals that comply with international certification standards and are used in industries where fingerprint authentication and security control are required.

Features

International standards: comply with ISO19794-2, ISO19794-4, ANSI 378, ANSI 381 and WSQ and other international standards;

Ultra-thin structure: ultra-thin structure, easy to integrate product structure design;

Fast acquisition speed: single frame image acquisition time ≤0.25s;

High image quality: semiconductor and optical fingerprint acquisition technology, clear image quality;

Strong adaptability: IDFinger fingerprint recognition algorithm, the algorithm adopts adaptive adjustment mechanism, so that dry, wet and rough fingers have good imaging effect;

Support system: Support Windows, Android operating system;

Simple development: Provide a complete SDK development kit, drive free installation, plug and play.

Specifications

Sensor type: Optical

Collection method: press type

Image size: 300*400pixel

Image resolution: 508dpi

Recognition rate (FAR) : <0.0001%

Rejection rate (FRR) : <1%

Comparison time: <0.1 SEC (1:1), <0.5 SEC (1:N,100 pieces)

Communication interface: USB1.1/2.0; SPI

Support system: Windows; Android

Working voltage: 3.3

Working current: 50mA

Electrostatic protection: contact discharge: ± 8KV Air discharge: ± 15KV

Operating temperature: 0°C ~ 55°C

Storage temperature: -40°C to 60°C

Working humidity: < 90%R.H (non-condensation)

Storage humidity: 20 ~ 93% R.H

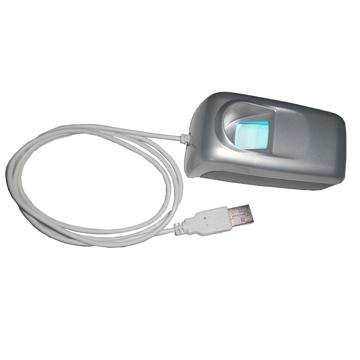

Photos

Packing list

USB cable
