How to Use a Fingerprint Sensor with Arduino?

With the rapid development of biometric technology, fingerprint sensors have become the core component of many smart devices and security systems. Especially when combined with open-source hardware such as Arduino, they can add powerful fingerprint recognition capabilities to projects. If you also want to use a fingerprint sensor with Arduino, this article will provide you with a detailed guide to help you complete this task smoothly.

1. What is a Fingerprint Sensor?

A fingerprint sensor is a device that can verify identity by recognizing the unique fingerprints of a finger. There are various types of fingerprint sensors, among which optical fingerprint sensor and capacitive fingerprint sensor are common.

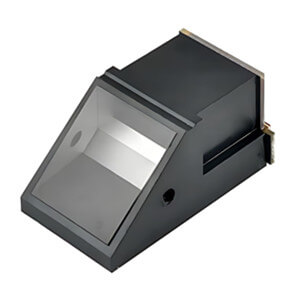

Optical Fingerprint Sensor

This type of sensor uses light to capture the fingerprint image and usually has high image quality, making it suitable for applications that require high precision.

Capacitive Fingerprint Sensor

This sensor obtains the fingerprint image by sensing the capacitance changes on the surface of the finger. It is usually more compact and can provide a faster response speed.
When choosing a fingerprint sensor to work with Arduino, you need to ensure that the sensor is compatible with the Arduino platform and supports standard communication protocols (such as UART or SPI).

2. Why Choose the Combination of Arduino and Fingerprint Sensor?

Arduino is an open-source hardware platform that is easy to learn and use, making it very suitable for entry-level DIY projects. When you need to build a simple fingerprint recognition system, Arduino can serve as the control center, working with the fingerprint sensor to read and process fingerprint data, thereby achieving functions such as identity verification and access control.

3. IDWorld Company and Fingerprint Technology

In the field of fingerprint recognition, IDWorld has over 20 years of technological research and development experience. Since its establishment in 2004, IDWorld has been focusing on the research of fingerprint algorithms and continuously innovating technologies. With the product research and development positioning of "taking fingerprint algorithms as the soul", the company has gradually become a leader in the fingerprint recognition security industry, providing a full range of fingerprint module products. Whether it is an optical fingerprint scanner or a capacitive fingerprint scanner, IDWorld can provide high-quality and high-performance solutions suitable for various security systems.
IDWorld's fingerprint recognition technology is widely used in multiple fields such as personal identity verification, access control systems, and attendance management, and is highly trusted by the industry and users. If you plan to combine a fingerprint sensor with Arduino, IDWorld's fingerprint modules are undoubtedly an ideal choice.

4. How to Use a Fingerprint Sensor with Arduino?

Let's take a step-by-step look at how to use a fingerprint sensor with Arduino to build a simple fingerprint recognition system.

Material List:

Arduino development board (such as Arduino UNO)

Fingerprint sensor module (such as IDWorld's optical fingerprint sensor or capacitive fingerprint sensor)

Jumper wires

Computer (for programming)

Steps:

1. Connect the Hardware:
First, you need to connect the fingerprint sensor to the Arduino development board. Most fingerprint sensors use the UART communication protocol. Therefore, you only need to connect the TX (transmit) and RX (receive) ports of the sensor to the RX and TX ports of Arduino, respectively. Generally, the sensor module also needs to connect the VCC and GND ports to ensure normal power supply.

2. Install the Library File:
In order for Arduino to communicate with the fingerprint sensor, you need to install the Arduino library for the fingerprint sensor. Taking IDWorld's fingerprint module as an example, you can open the library manager in the Arduino IDE, search for and install IDWorld's fingerprint library, or download and manually install the library.

3. Write the Code:
In the Arduino IDE, you can write code to initialize the sensor and implement fingerprint acquisition and comparison functions.

4. Upload and Test:
After writing the code, click the "Upload" button to upload the code to the Arduino board. At this time, you can view the fingerprint recognition results through the Serial Monitor. When you place your finger on the sensor, the program will automatically verify the fingerprint and output the matching result.

5. Expand Functions:

If you want to further optimize your fingerprint recognition system, you can consider adding the following functions:

Fingerprint Registration and Storage: You can store fingerprint data in the memory of Arduino through the program and perform matching when needed.

Access Control: If you apply the fingerprint recognition system to access control, you can open the electric lock by controlling the relay after a successful match.

6. Conclusion

Combining a fingerprint sensor with Arduino not only adds more interactivity and security to your project but also greatly enhances your technical skills. If you choose a high-quality fingerprint sensor like IDWorld, you will be able to enjoy stable performance and reliable support.
The application of fingerprint technology has penetrated into all aspects of our daily lives. Whether it is an optical fingerprint sensor or a capacitive fingerprint sensor, they both provide us with more secure and convenient identity verification methods. I believe that with the guidance of this article, you can easily implement fingerprint recognition functions and integrate them into your Arduino projects.
I hope this article can help you understand how to use a fingerprint sensor with Arduino. If you are more interested in fingerprint recognition technology, you can follow IDWorld. Their products and technology will be your helpful assistants during the development process.
