What Is a Fingerprint Module and How Does It Work?

You probably unlock your smartphone, open your office door, or log into your bank account using your fingerprint dozens of times a day. It happens in a fraction of a second, feeling almost like magic. But behind that quick tap is a fascinating piece of technology: the fingerprint module.

If you are developing a smart lock, a time attendance system, or a secure safe, understanding the hardware behind biometric security is crucial. Today, we are going to strip away the complex jargon and explain exactly what a fingerprint module is, how it differs from a basic sensor, and how the whole system works together.

Fingerprint Sensor vs. Fingerprint Module: What’s the Difference?

People often use the terms interchangeably, but in the manufacturing world, there is a distinct difference.

• The Fingerprint Sensor: Think of this as the "eye." It is the raw electronic component that physically touches the finger and captures the image or data of the fingerprint ridges.

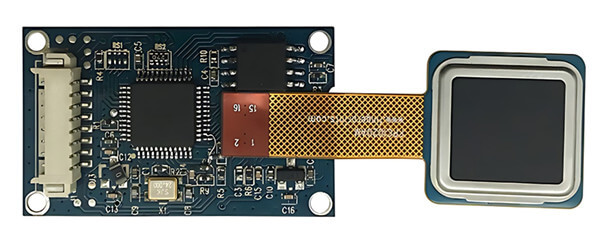

• The Fingerprint Module: This is the complete brain and body. A module includes the sensor, but it also packs a microprocessor (DSP), memory, and built-in algorithms. It doesn't just capture the print; it processes it, stores it, and tells your main device, "Yes, this is the right person."

In short, while a fingerprint scanner is the final product the user interacts with, the module is the ready-to-integrate engine powering it.

How Does a Fingerprint Module Work? (Step-by-Step)

When a user places their finger on the scanning area, a rapid three-step process kicks off:

1. Image Capture

The moment a finger touches the surface, the sensor reads the unique patterns of ridges (the raised lines) and valleys (the gaps between them). Depending on the technology used, it takes a highly detailed digital "snapshot" of the finger.

2. Feature Extraction

Here is where the module's built-in algorithm shines. It doesn't actually save a picture of your fingerprint (which is great for privacy). Instead, it looks for specific "minutiae points"—where ridges end or split into two. It turns these points into a complex mathematical code.

3. Matching and Decision

The module compares this new mathematical code against the templates already saved in its memory. If the codes match, the module sends a simple "Pass" signal to your device's motherboard. If not, it sends a "Fail." All of this happens in less than 0.5 seconds.

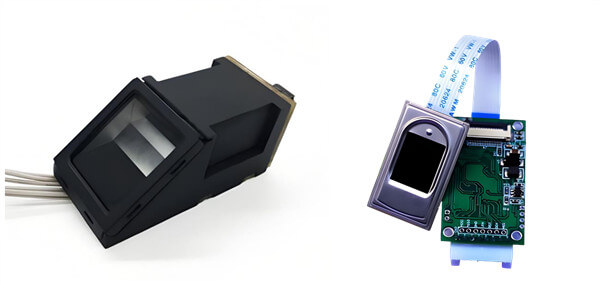

The Three Main Types of Fingerprint Sensors

Not all modules capture data the same way. As a manufacturer, we typically categorize them into three main technologies:

1. Optical Sensors: The oldest and most durable tech. It literally shines a light on your finger and takes a high-contrast digital photograph. They are incredibly tough and widely used in outdoor access control systems.

2. Capacitive Sensors: This is what you find on most smartphones and smart padlocks. Instead of light, it uses thousands of tiny electrical capacitors. It measures the electrical current between the ridges (which touch the sensor) and the valleys (which don't). It's highly secure because it requires a real, conductive human finger—fake silicone prints won't work here.

3. Ultrasonic Sensors: The newest high-end tech. It pings high-frequency sound waves against the finger to map a 3D image of the print. It works flawlessly even if your fingers are wet or dirty.

Why Choosing the Right Manufacturer Matters

Integrating biometric security into your product shouldn't be a headache. A high-quality fingerprint module should offer a low False Acceptance Rate (FAR), a low False Rejection Rate (FRR), and easy-to-use SDKs for your software engineers.

Whether you are building the next generation of smart home locks, secure USB drives, or industrial time-attendance machines, the reliability of your product comes down to the quality of the module inside it.
