How to Choose the Right UART Fingerprint Sensor for Your Project

Selecting the right UART fingerprint sensor is a critical step when designing secure embedded systems such as smart locks, access control panels, safes, or attendance devices. The right module improves user experience, reduces false recognition, and ensures long-term stability. The wrong choice can lead to slow authentication, frequent errors, or integration issues.

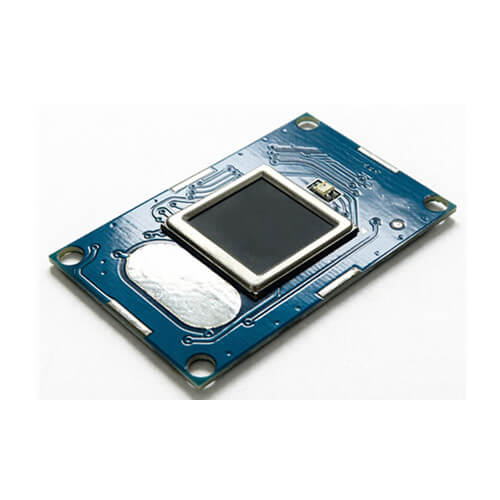

If you are evaluating modules for your project, start by reviewing the core specifications of a reliable UART Fingerprint Sensor to understand what professional-grade performance looks like. This will give you a clear benchmark when comparing different suppliers.

1. Choose the Right Sensor Type: Capacitive vs Optical

There are two main types of fingerprint sensors used in embedded systems: optical and capacitive.

• Optical sensors capture fingerprint images using light. They are typically larger and more sensitive to surface contamination.

• Capacitive sensors use electrical signals to detect fingerprint patterns. They offer better anti-spoofing performance and more compact designs.

For smart locks and compact devices, a UART capacitive fingerprint sensor is usually the better option due to its smaller size, improved durability, and stronger security performance.

2. Check Fingerprint Capacity

Fingerprint storage capacity directly affects how your device will be used. Entry-level systems may only require storage for 100–300 users. Commercial or office systems often require 1,000 or more templates.

Before selecting a module, define:

• How many users will register?

• Will multiple fingerprints per user be stored?

• Is future expansion required?

Choosing a module with scalable capacity avoids hardware redesign later.

3. Evaluate Accuracy: FAR and FRR

Accuracy is measured by two key indicators:

• FAR (False Acceptance Rate) – the chance of accepting an unauthorized fingerprint.

• FRR (False Rejection Rate) – the chance of rejecting an authorized user.

For security-sensitive applications such as safes or access control, look for a low FAR (for example, below 0.001%) while maintaining a reasonable FRR to avoid frustrating users.

4. Consider Recognition Speed

Users expect instant unlocking. A slow sensor negatively affects product perception. Check the 1:N comparison time (matching one fingerprint against the full database). For smooth operation, it should typically be under 0.5 seconds.

Fast processing is especially important for:

• Office attendance systems during peak hours

• Apartment access control

• Shared equipment lockers

5. Verify Interface Compatibility

A UART fingerprint reader communicates through a serial UART interface, usually at 3.3V TTL level. Make sure:

• The voltage matches your MCU (STM32, ESP32, Arduino, etc.)

• The default baud rate is compatible or configurable

• SDK or command documentation is available

Clear communication protocols significantly reduce development time.

6. Environmental Adaptability

Real-world usage conditions vary. Consider:

• Operating temperature range

• Humidity tolerance

• Performance with dry, wet, or rough fingers

If your product will be installed outdoors or in industrial environments, this becomes even more important.

7. Power Consumption

For battery-powered smart locks or portable devices, low operating current is essential. Compare standby current and working current specifications carefully to maximize battery life.

8. Security Level Settings

Adjustable security levels allow you to balance convenience and safety. Higher security levels reduce false acceptance but may slightly increase rejection rates. Flexible configuration ensures your system can adapt to different application scenarios.

Final Thoughts

Choosing the right UART fingerprint scanner is not just about price. It is about balancing accuracy, speed, capacity, integration simplicity, and long-term reliability.

Define your application requirements clearly, compare technical specifications carefully, and select a module designed for stable embedded integration. A well-chosen fingerprint sensor improves both security and user experience—two factors that ultimately determine the success of your product.
