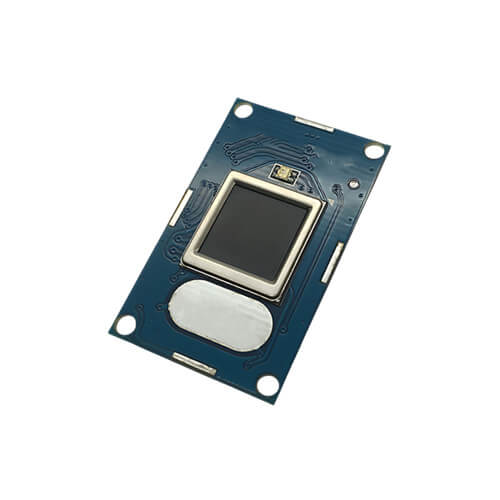

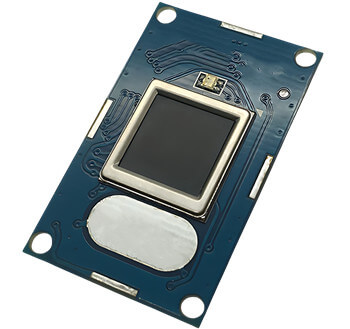

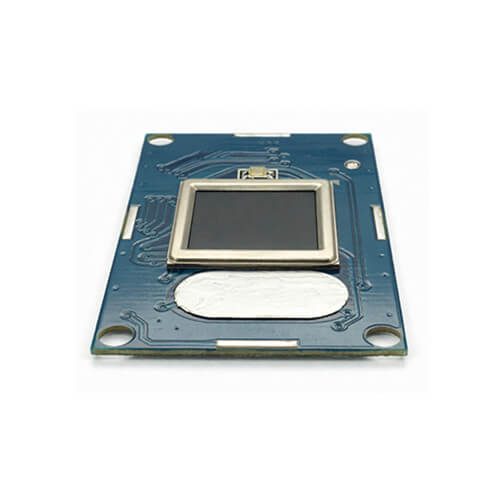

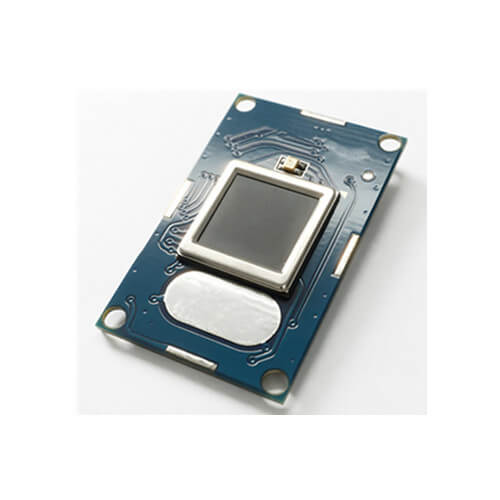

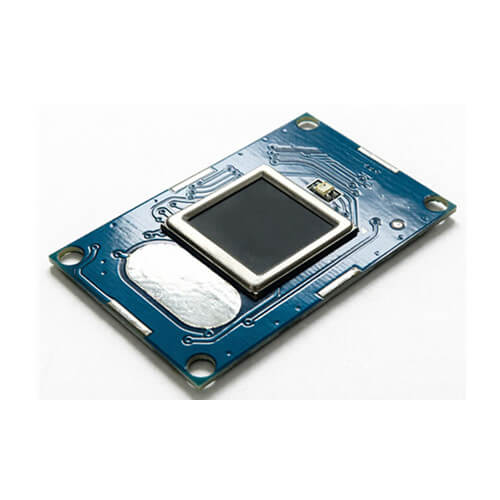

The UART Fingerprint Sensor ID1017 is a cutting-edge, high-performance capacitive fingerprint sensor designed to deliver fast and accurate biometric identification. Equipped with a 32-bit Cortex-M4 processor, this sensor operates at a CPU frequency of 150MHz and runs the innovative IDFingerV6.0 fingerprint identification algorithm. The result is rapid comparison speeds and high accuracy, making it ideal for a wide range of applications including electronic locks, access control systems, POS machines, and smart devices.
Key Features of the UART Fingerprint Sensor
Capacitive Fingerprint Sensor: This sensor offers sensitive detection, requiring only a gentle touch on the collection window for quick recognition.

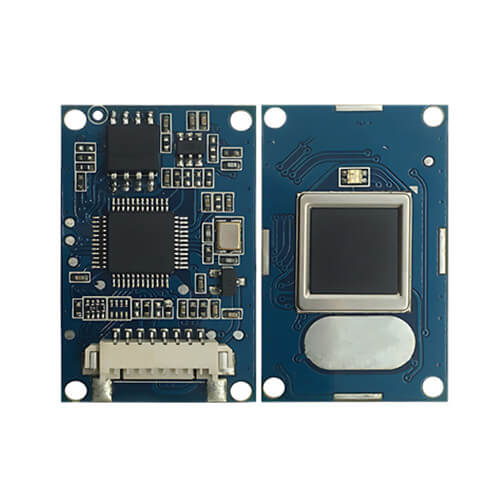

High Hardware Integration: The sensor and master control unit are integrated, ensuring seamless embedding into compact applications.
360° Rotation Recognition: With its intelligent self-learning capability, the sensor supports 360-degree rotating acquisition and comparison, ensuring accuracy from any angle.
Power Efficiency: The touch wake-up feature ensures lower power consumption, making it suitable for low-energy devices.
Standard UART Communication: With UART communication and a comprehensive SDK development kit, secondary development is easy and efficient.
Specifications
Model: ID1017
Sensor Type: Capacitive Fingerprint Sensor
Effective Image Size: 8.8mm x 8.8mm
Image Resolution: 500 dpi
Image Size: 176 x 176 pixels
Fingerprint Recognition Time:<0.1 sec (1:1), <0.5 sec (1:N, 80 fingerprints)
Fingerprint User Capacity: 1700 users
Fingerprint Registration Time: < 3 seconds
Fingerprint Matching Method: 1:1 / 1:N
False Rejection Rate (FRR): < 2%
False Recognition Rate (FAR): < 0.001%
Communication Interface: UART
Support Systems: Windows, Android, Embedded
Operating Voltage: DC 3.3V
Operating Current: < 40 mA
Operating Temperature: -10°C to 65°C
Operating Humidity: 20% to 93% R.H
Storage Humidity: 20% to 93% R.H (Non-condensing)
Applications of the UART Fingerprint Sensor
The UART Fingerprint Sensor is ideal for various security applications where high accuracy and fast identification are critical. Some of the most common uses include:
Electronic Locks: Enhance security with biometric access control.
Access Control Systems: Streamline authentication processes for employees and visitors.
POS Machines: Implement secure, fast identification for transactions.
Smart Devices: Improve the security and functionality of your smart gadgets with advanced fingerprint recognition technology.
Why Choose the UART Fingerprint Sensor?
With its superior integration, efficient performance, and high recognition accuracy, the UART fingerprint sensor is the ideal solution for developers looking to enhance their embedded systems with robust biometric features. Whether you're working with Arduino fingerprint sensors or capacitive fingerprint sensor modules, this sensor provides the flexibility and reliability needed to bring advanced biometric authentication to your products.
Easy integration with existing systems and its high adaptability to various finger types make this fingerprint sensor a top choice for a wide array of applications. Enhance your security systems today with the UART Fingerprint Sensor and enjoy seamless, accurate, and fast fingerprint recognition at your fingertips.
