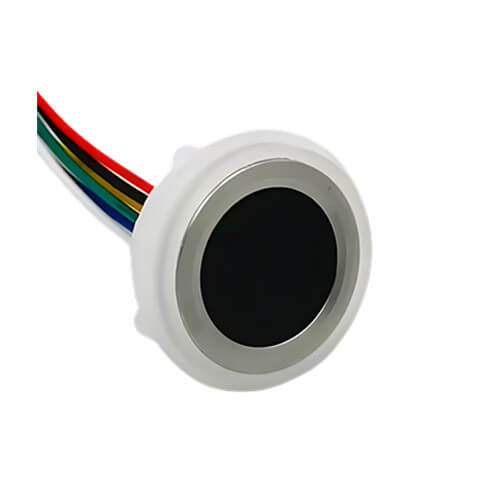

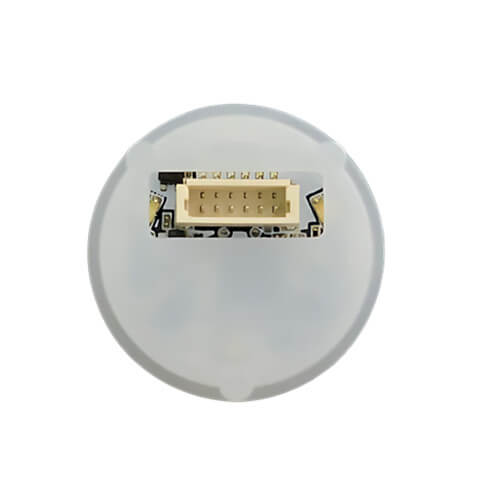

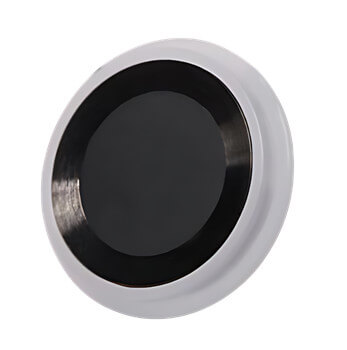

The ID1016R biometric fingerprint sensor is a compact, high-performance biometric fingerprint module that integrates a capacitive fingerprint sensor and control motherboard into one single unit. Designed for fast, accurate, and stable fingerprint recognition, it is ideal for a wide range of security and smart terminal applications.
All-in-one design combining sensor and controller for easy integration
Advanced capacitive fingerprint sensing technology
Fast fingerprint recognition with high accuracy
Supports 360° fingerprint rotation recognition
Strong adaptability to dry, wet, and different finger conditions
Low false acceptance and false rejection rates
Standard UART interface for simple secondary development
Compatible with Windows, Android, Linux, and embedded systems
Powered by the latest IDFinger V6.0 fingerprint algorithm, this biometric fingerprint reader supports intelligent self-learning, ensuring improved performance over time and consistent recognition results in real-world environments.
The ID1016R biometric fingerprint scanner delivers fast and reliable fingerprint authentication for both individual and multi-user scenarios.
1:1 fingerprint comparison time: < 0.1 second
1:N fingerprint comparison time: < 0.5 second (up to 80 fingerprints)
Fingerprint enrollment time: < 3 seconds
User capacity options: 80 or 200 fingerprints
| Model | ID1016R |
|---|---|
| Sensor Type | Capacitive Biometric Fingerprint Sensor |
| Collection Window Size | 12.8 mm × 12.8 mm |
| Effective Image Area | 8 mm × 8 mm |
| Image Resolution | 508 DPI |
| Image Size | 160 × 160 pixels |
| False Rejection Rate (FRR) | < 2% |
| False Acceptance Rate (FAR) | < 0.001% |
| Communication Interface | UART |
| Operating Voltage | DC 3.3V |
| Operating Current | 55 mA |
| Operating Temperature | -10°C to 65°C |
| Operating Humidity | 20% – 93% RH (non-condensing) |
The ID1016R biometric fingerprint module uses a standard UART communication interface and provides a complete communication protocol and command set. This makes it easy for developers to integrate fingerprint functions such as enrollment, matching, deletion, and image processing.
Supported operating systems include:
Windows
Android
Linux
Embedded systems
Learn more about our full range of biometric fingerprint modules or explore our fingerprint algorithm technology.
This biometric fingerprint sensor is widely used in security and smart hardware solutions that require reliable identity authentication, including:
Fingerprint door locks
Access control systems
Fingerprint attendance systems
Smart terminals
Self-service kiosks
Embedded security devices
Compared with traditional fingerprint solutions, the ID1016R biometric fingerprint reader offers faster recognition, higher accuracy, and better adaptability to real-world usage conditions. Its compact design and stable performance make it a reliable choice for both commercial and industrial applications.
The ID1016R is a capacitive biometric fingerprint sensor that integrates the fingerprint sensor and control board into a single compact module. It supports fingerprint enrollment, comparison, and deletion, making it suitable for access control, fingerprint locks, and embedded systems.
The ID1016R biometric fingerprint reader offers a false acceptance rate (FAR) of less than 0.001% and a false rejection rate (FRR) below 2%. It uses the IDFinger V6.0 algorithm to ensure fast and reliable fingerprint recognition.
The ID1016R biometric fingerprint scanner supports storage of up to 80 or 200 fingerprint templates, depending on the configuration, making it suitable for both small and medium-sized user groups.
Yes. Thanks to its capacitive sensing technology and intelligent self-learning algorithm, the sensor performs well with dry, wet, or worn fingerprints and supports 360-degree fingerprint rotation recognition.
The biometric fingerprint sensor supports Windows, Android, Linux, and various embedded systems through a standard UART communication interface.
Yes. The module provides a complete UART communication protocol and command set, allowing developers to quickly implement fingerprint enrollment, matching, and management functions with minimal development effort.
