When designing a biometric access control system, a smart lock, or a handheld terminal, choosing the right hardware is only half the battle. Once you select your sensor, you face a critical engineering decision: How will the sensor talk to your main processor?
The communication interface you choose directly impacts your system's processing speed, power consumption, pin count, and development timeline. For most embedded designs, you will choose between three primary interfaces: UART, USB, and SPI.
Let’s break down how these interfaces work in a practical fingerprint module, their pros and cons, and how to choose the right one for your next project.
UART (Universal Asynchronous Receiver-Transmitter) is the most common interface for embedded biometrics. It uses just two active data lines: TX (Transmit) and RX (Receive), along with VCC and GND.
In a UART-based setup, the fingerprint module usually acts as an intelligent standalone device. It has its own onboard MCU that handles the heavy lifting—capturing the image, extracting features, and running the matching algorithm. The host microcontroller (like an Arduino, STM32, or ESP32) simply sends simple hex commands (e.g., "Verify Fingerprint") and waits for a simple "Yes" or "No" response.
Minimal Pin Count: Only 4 wires total (Power, Ground, TX, RX).
Easy to Debug: You can read the serial data directly using a basic USB-to-TTL adapter and a serial monitor.
Low Host Overhead: The host MCU doesn't need to process complex image data.
UART is relatively slow. If your application requires uploading raw, high-resolution fingerprint images to a host database, UART will cause a noticeable lag.
If you are integrating a fingerprint reader into a system running a full operating system—like Windows, Android, or Linux (including Raspberry Pi)—USB is the standard choice.
USB interfaces allow for rapid data transfer. This is essential when the biometric fingerprint module acts as a "dumb" sensor that streams raw image data to a powerful host processor, where the actual template extraction and matching take place.
High Bandwidth: Instantly transfers high-resolution images for server-side matching or enrollment.
Standardized Drivers: Often works out-of-the-box with Windows Hello or Android biometric APIs.
Hot-Pluggable: Perfect for external desktop peripherals or modular handheld devices.
Implementing a USB protocol stack on a low-cost, resource-constrained microcontroller is complex and resource-heavy. It also typically consumes more power than UART.
SPI (Serial Peripheral Interface) is a synchronous, four-wire serial bus (MISO, MOSI, SCK, and CS). It is widely used when a sensor needs to send large amounts of data to a local microcontroller very quickly, without the protocol overhead of USB.
In fingerprint applications, SPI is typically used for raw silicon sensors (capacitive sensors without an onboard co-processor). The raw sensor matrix data is clocked out directly to the host MCU at high speeds (often up to several megahertz).
Extremely Fast: Much faster than UART, allowing quick raw image transfers to local microcontrollers.
Low Protocol Overhead: Simpler to implement in firmware than USB.
It requires more GPIO pins (at least 4 for data/clock, plus power and interrupt lines). SPI is also sensitive to physical distance; the module must be placed very close to the host MCU on the PCB to avoid signal noise.

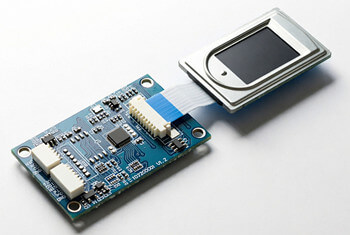

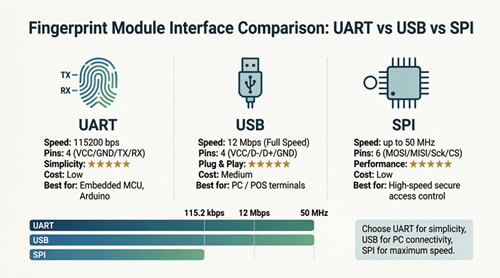

| Feature | UART | USB | SPI |
|---|---|---|---|
| Data Speed | Low to Medium (9600 to 115200 bps typical) | High (12 Mbps - 480 Mbps) | Very High (Up to several Mbps) |
| Pin Count | Minimal (4 pins: VCC, GND, TX, RX) | 4 pins (VCC, GND, D+, D-) | 6+ pins (VCC, GND, MISO, MOSI, SCK, CS, INT) |
| Host Processing | Very Low (Module does the matching) | High (Host usually processes images) | Medium to High (Host processes raw data) |
| Best For | Smart locks, simple access control, microcontrollers | PCs, Android tablets, POS terminals, time attendance | Compact embedded systems requiring fast raw image transfer |
If you are building a battery-powered device like a smart door lock using a standard microcontroller, a UART fingerprint module is almost always the best choice due to its low power consumption and simple integration. If you are developing a USB peripheral for office security or a rugged handheld device running Android, opt for USB. For custom, high-speed hardware integration where space is tight and you want to use your own matching algorithms, look into SPI.
