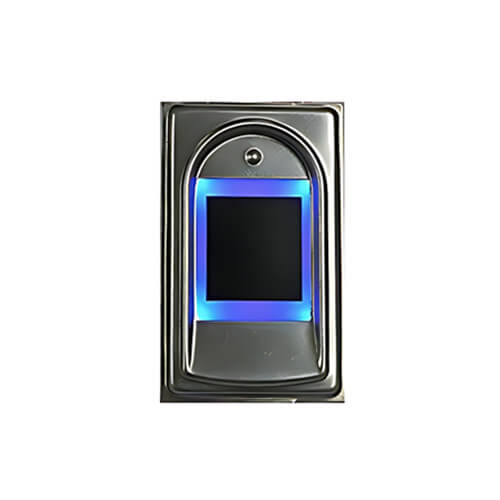

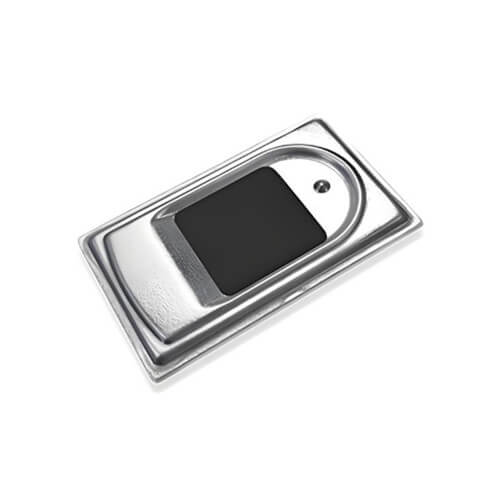

The Adafruit Fingerprint Sensor ID1019D is a high-performance security fingerprint module designed for a wide range of applications requiring reliable identity authentication. With its compact structure and large effective fingerprint image area, this sensor is perfect for embedded devices.
Advanced fingerprint algorithm for fast speed and high accuracy
Sweden FPC capacitive fingerprint sensor with a resolution of 192x192 pixels
Integrated design that ensures small size, low power consumption, and high reliability
Large storage capacity for up to 1000/2000 fingerprints
Standard UART communication for easy development and USB customization
| Model | ID1019D |
|---|---|
| Sensor Type | Capacitive |
| Pixel Resolution | 192x192 (508dpi) |
| Fingerprint Capacity | 1000/2000 pieces |
| False Acceptance Rate (FAR) | < 0.001% (Level 3) |
| False Rejection Rate (FRR) | < 2% (Level 3) |
| Template Size | 498 bytes |
| Security Level Settings | Level 1 - Level 5 (Factory default: Level 3) |
| Comparison Time | 1:N Comparison time < 0.5 seconds |
| Communication | UART, 3.3V-TTL level |
| Baud Rate | Factory setting: 115200bps |
| Operating Voltage | DC 3.3V ±10% |
| Operating Current | < 40mA |
| Working Environment | Temperature: -10℃ to 60℃, Humidity: 20%-80% |
The Adafruit Fingerprint Sensor Module ID1019D is ideal for integration into various hardware terminals that require identity authentication, including:
Access control systems
Attendance machines
Intelligent terminals
Handheld POS machines
Fingerprint locks
For more details on integrating the Adafruit Optical Fingerprint Sensor into your projects, check out our related products.
