How Advanced Algorithms Improve the Speed and Accuracy of Fingerprint Modules

When you press your finger against a scanner to unlock a door or authorize a payment, the process feels instantaneous. Most people credit the physical sensor for this seamless experience. However, the hardware is only half the story.

If the sensor is the "eye" that captures the image, the algorithm is the "brain" that understands it. Without a highly optimized algorithm, even the most expensive sensor will struggle with slow response times and frequent errors.

Let’s break down exactly how advanced algorithms work behind the scenes to make biometric authentication fast, accurate, and reliable.

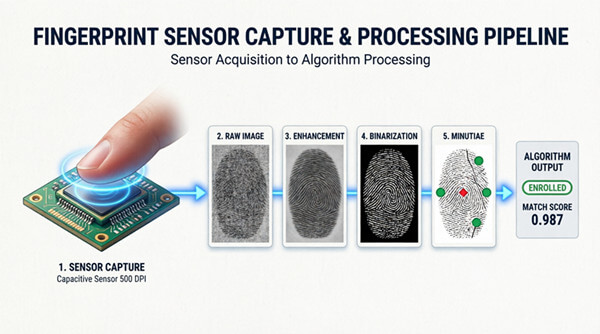

1. Image Enhancement: Cleaning Up the Mess

In the real world, fingers are rarely perfectly clean or dry. People have sweaty hands, dry skin, or minor cuts. When a sensor captures a raw image under these conditions, it often looks blurry, broken, or noisy.

The first job of an advanced algorithm is image enhancement. It acts like a digital photo editor, automatically adjusting contrast, connecting broken ridges, and filtering out background noise. By turning a poor-quality scan into a clear, high-contrast map, the algorithm ensures the system doesn't reject a legitimate user just because their finger was a little dry.

2. Feature Extraction: Finding the Landmarks

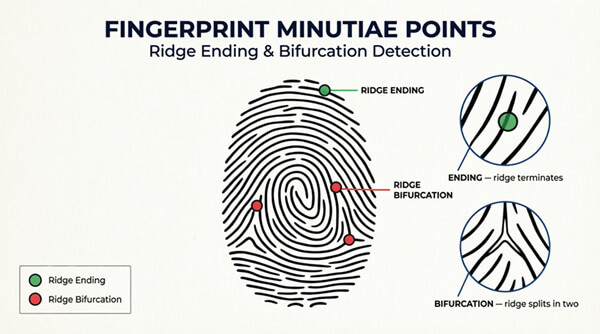

A fingerprint system doesn't actually save a picture of your fingerprint. Storing full images would take up too much memory and pose a massive security risk. Instead, the algorithm looks for specific landmarks called minutiae points.

These are the spots where a ridge ends abruptly or splits into two (bifurcations). A smart algorithm can scan the enhanced image and map out dozens of these points in milliseconds, converting them into a complex mathematical template. This lightweight template is what gets stored and used for future comparisons.

3. High-Speed Matching: The Needle in the Haystack

When you place your finger on the scanner again, the algorithm creates a new template and compares it against the ones stored in the database. This is where speed becomes critical.

Basic algorithms compare templates point-by-point, which takes time. Advanced algorithms use spatial geometry and indexing techniques. They can instantly align the new scan with the stored template, regardless of the angle at which you placed your finger (360-degree recognition). This is why modern systems can complete a match in less than 0.5 seconds.

Balancing FAR and FRR

In biometrics, accuracy is measured by two main metrics:

• FAR (False Acceptance Rate): The probability that the system lets an unauthorized person in.

• FRR (False Rejection Rate): The probability that the system rejects a valid user.

There is usually a trade-off between the two. If you make the system too strict, it becomes frustrating to use (high FRR). If you make it too loose, it becomes insecure (high FAR). Years of research and machine learning are required to develop an algorithm that keeps FAR near zero while maintaining a very low FRR.

Conclusion

The next time you see a fingerprint scanner unlock a device in the blink of an eye, remember the invisible math making it happen. By cleaning up messy images, extracting precise data points, and executing lightning-fast comparisons, advanced algorithms are the true driving force behind modern biometric technology.
