Optical vs. Capacitive Fingerprint Scanners: A Comprehensive Comparison

Fingerprint recognition has become ubiquitous in modern security systems, from smartphones to access control terminals. Two technologies dominate the market: optical and capacitive scanning. While both authenticate users by analyzing fingerprint patterns, they work in fundamentally different ways and suit different applications.

How They Work

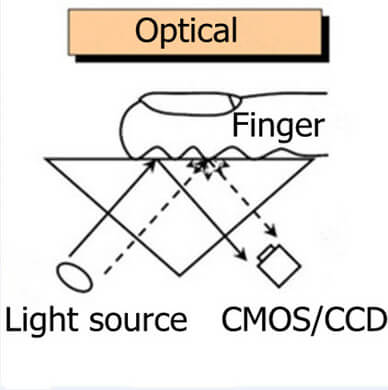

Optical Scanning

Optical scanners capture a digital image of the fingerprint using light and a sensor array, similar to how a camera works.

• LED illuminates the finger

• Light reflects off ridges and valleys

• CCD or CMOS sensor captures the image

• Software analyzes the pattern

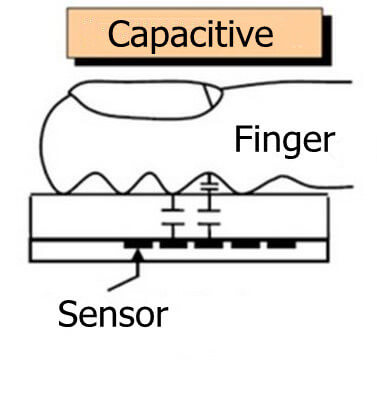

Capacitive Scanning

Capacitive sensors measure the electrical charge differences between fingerprint ridges and valleys through tiny capacitor arrays.

• Array of capacitor plates forms the sensor

• Ridges create higher capacitance

• Valleys produce lower capacitance

• Creates an electrical map of the print

Key Differences

Factor	Optical	Capacitive
Image Depth	2D surface image	Subsurface pattern detection
Physical Size	Bulkier (requires optical path)	Thinner profile
Durability	Scratch-resistant glass surface	Can degrade with surface damage
Power Draw	Higher (LED illumination)	Lower consumption
Cost Range	$5–$50 depending on resolution	$10–$80+
Wet/Dirty Fingers	Reduced accuracy	Better performance

Performance Factors

Optical Scanners

✓ Excellent durability in harsh environments

✓ Large scanning surface available

✓ Consistent performance over time

✓ Works well with dry skin

✗ Vulnerable to 2D spoofing (photos)

✗ Struggles with moisture or residue

✗ Higher power requirements

✗ Thicker module profile

Modern optical fingerprint module address many early limitations. High-resolution sensors now capture fine details that make spoofing significantly harder, and advanced algorithms compensate for varying lighting and skin conditions.

Capacitive Scanners

✓ Harder to spoof (requires conductive material)

✓ Slim form factor

✓ Energy efficient

✓ Better with moist fingers

✗ Surface scratches degrade accuracy

✗ Higher manufacturing cost

✗ Smaller sensor area

✗ Sensitive to static discharge

Real-World Applications

Where Optical Excels

Time & Attendance Systems: Large glass platen handles thousands of daily authentications without degradation.

Access Control: Weather-resistant housings make optical sensors ideal for outdoor installations.

Banking Kiosks: Reliable performance in high-traffic public environments where the sensor faces constant use.

Industrial Settings: Dirt, dust, and rough handling require the robust surface protection optical modules provide.

Where Capacitive Excels

Smartphones & Tablets: Thin profile integrates seamlessly into mobile devices.

Laptops: Low power draw preserves battery life while maintaining security.

Secure Documents: Passport readers and ID verification systems benefit from spoof resistance.

Payment Terminals: Fast response and security features support contactless payment authentication.

Security Considerations

Neither technology is inherently "more secure"—effective security depends on implementation quality and additional safeguards.

Optical systems traditionally faced criticism for 2D spoofing vulnerability. A high-resolution photo could potentially fool basic optical sensors. However, modern systems counter this with:

• Liveness detection (pulse, temperature, multispectral analysis)

• High-resolution imaging that captures pore-level detail

• Multi-frame analysis to detect static images

Capacitive sensors resist simple photo attacks because they require actual skin contact to register a pattern. But sophisticated attacks using conductive materials molded from lifted prints remain possible for both technologies.

In practice, the security difference narrows when you factor in proper implementation. Both benefit from encryption, secure storage of templates, and multi-factor authentication layering.

Making the Right Choice

Your decision should align with your specific requirements:

Choose optical if you need: Durability in tough environments, large sensor area for varied finger placement, consistent long-term performance, or cost-effective deployment at scale. Industries like manufacturing, construction site access, and public terminal applications typically favor this approach.

Choose capacitive if you need: Compact integration, low power consumption, resistance to oily or moist conditions, or applications where device thickness matters. Consumer electronics and portable security devices lean toward capacitive solutions.

Hybrid approaches: Some modern devices combine both technologies or layer optical scanning with additional sensors (infrared, ultrasonic) to maximize security and usability across conditions.

The Bottom Line

Optical and capacitive fingerprint scanners serve overlapping but distinct use cases. Optical technology offers proven reliability, physical robustness, and straightforward integration for fixed installations. Capacitive sensors deliver space efficiency, power savings, and strong performance in mobile contexts.

Rather than debating which is "better," consider your environment, usage patterns, and integration constraints. A warehouse access terminal has different priorities than a smartphone. When designed properly, both technologies deliver reliable biometric authentication—the key is matching the tool to the task.

For applications requiring long-term durability and high-volume throughput, optical fingerprint modules continue to prove their value across security, time tracking, and access control deployments worldwide.
