A Detailed Explanation of How Fingerprint Modules Work

When selecting a fingerprint module, many people ask: how exactly does it recognise fingerprints?

It may seem as simple as ‘pressing a button to unlock the door’, but the process actually involves several steps, including data capture, imaging, feature extraction and comparison. This article breaks down the working principles of fingerprint modules in simple terms.

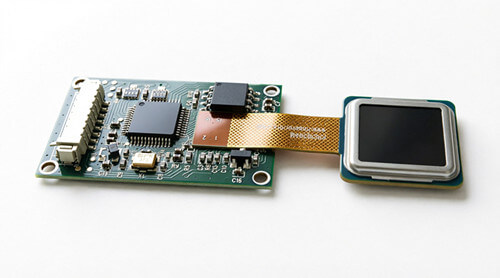

I. Basic Structure of a Fingerprint Module

A complete fingerprint module typically consists of the following components:

• Fingerprint sensor (capacitive or optical)

• Main control processor chip

• Fingerprint algorithm software

• Storage unit

• Communication interface (UART / USB)

In simple terms: the sensor is responsible for ‘seeing’, the chip for ‘calculating’, the algorithm for ‘comparing’, and the interface for ‘transmitting’.

II. How is fingerprint capture carried out?

Taking the currently mainstream capacitive fingerprint modules as an example, the principle does not involve taking a photograph, but rather reconstructing the fingerprint pattern through capacitive sensing.

• The surface of a finger features ridges and valleys. When a finger is placed on the sensor:

• The ridges make close contact, resulting in a significant change in capacitance

The valleys make weaker contact, resulting in a different capacitance value

The sensor array converts these subtle differences into digital signals, thereby generating a greyscale fingerprint image.

Compared to traditional optical solutions, the semiconductor (capacitive) method is more compact and offers greater resistance to spoofing.

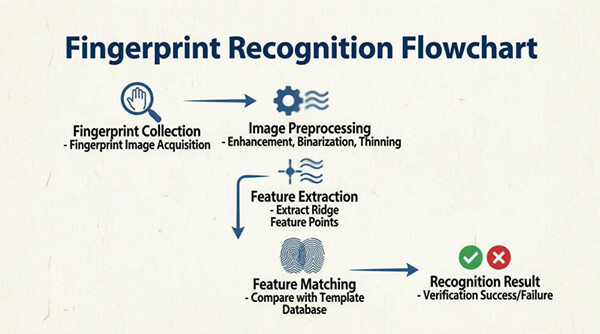

III. The Process from Image to ‘Fingerprint Template’

Once an image has been captured, the entire image is not compared directly; instead, it undergoes the following steps:

• Image optimisation: noise reduction and enhancement of ridge clarity

• Feature extraction: extraction of ‘fingerprint feature points’ (such as bifurcation points and terminal points)

• Template generation: conversion of features into a data file

• Storage or comparison: performing 1:1 or 1:N matching

In simple terms: the system does not store the entire fingerprint image, but rather the ‘coordinates of key features’.

4. How is fingerprint matching carried out?

Fingerprint modules typically employ two types of matching methods:

• 1:1 matching — verifies whether the user is the specified individual

• 1:N matching — searching the database for a match

When a user places their finger on the sensor, the system rapidly calculates the similarity of the feature points. If this meets the threshold set for the security level, authentication is successful.

A module with stable performance typically needs to strike a balance between recognition speed and false acceptance rate.

V. Key Factors Affecting Recognition Performance

• Sensor resolution (typically 508 dpi)

• Algorithm optimisation capabilities

• Template size and storage capacity

• Operating environment (humidity, dust)

• Finger condition (dryness, wear)

Therefore, when selecting a product, it is essential to focus not only on price but also on the overall maturity of the solution.

For example, the ID1019 capacitive fingerprint module utilises a high-performance processing chip and mature algorithms, supports the storage of 1,000 fingerprints, and is suitable for access control, smart locks and the development of embedded terminal devices.

VI. Why have capacitive fingerprint modules become the industry standard?

With the widespread adoption of smart locks and IoT devices, products are becoming increasingly compact, whilst demands for low power consumption and high security are growing ever more stringent.

Capacitive solutions offer distinct advantages in terms of size, recognition speed and anti-counterfeiting capabilities, and have therefore gradually become the industry standard.

Conclusion

The operating principle of a fingerprint module is not complicated; essentially, it involves:

Capturing the fingerprint pattern → Extracting features → Generating a template → Performing a comparison.

What truly determines the quality of a product is not just the hardware itself, but the overall compatibility of the ‘sensor + algorithm + chip’ combination.

If you are evaluating fingerprint module solutions, we recommend starting by understanding the product from a theoretical perspective, and then making your selection based on your specific application scenario.
