How to Choose the Right Optical Fingerprint Sensor for Your Project

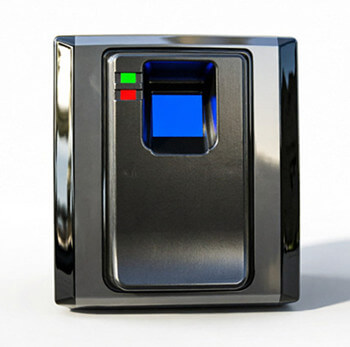

Selecting the right optical fingerprint sensor is one of the most important decisions when designing a biometric device. Whether you are developing a smart lock, access control terminal, safe, or attendance system, the sensor you choose directly affects performance, reliability, and user experience.

This guide explains the key factors in a clear and practical way, helping you match the sensor to your real application needs.

1. Understand the Working Environment

Start with where and how the device will be used.

• Indoor or outdoor? Outdoor systems require wider temperature tolerance.

• Dry or humid conditions? Sensors should perform consistently with dry or wet fingers.

• High static environments? Strong ESD protection improves long-term stability.

For example, door locks in residential buildings often face changing humidity and temperature. A sensor with stable imaging and anti-static protection will reduce failure rates.

2. Check Resolution and Image Quality

Resolution determines how clearly fingerprint details are captured. Most reliable optical fingerprint sensors offer 500 dpi, which is widely accepted as the standard for accurate recognition.

Lower resolution may reduce cost, but it can also increase false rejections or slower matching in real use. For security-related products, 500 dpi is generally recommended.

3. Evaluate Matching Speed and Accuracy

Two key indicators matter:

• FAR (False Acceptance Rate) – measures security level

• FRR (False Rejection Rate) – affects user experience

For consumer and commercial systems, a low FAR combined with fast matching time (typically under 0.1 second for 1:1 comparison) ensures both safety and convenience.

If your device requires searching across many users (1:N matching), check the matching speed at higher capacities.

4. Consider User Capacity

Different applications require different storage sizes:

• Smart locks: usually 50–300 users

• Office access control: hundreds to thousands

• Time attendance systems: often 1,000+ users

Choosing excessive capacity may increase cost unnecessarily, while insufficient capacity limits product scalability.

5. Review Interface and System Compatibility

Integration simplicity is often overlooked.

• UART – common for embedded systems

• USB – useful for development and desktop applications

• OS support – check compatibility with Linux, Android, or Windows

Clear communication protocols and available SDK support can significantly shorten development time.

6. Power Consumption and Hardware Constraints

For battery-powered devices, low voltage (e.g., 3.3 V) and moderate current consumption are important for longer operating life.

Also review module size and sensing area to ensure it fits your industrial design.

7. Algorithm and Processing Capability

The fingerprint algorithm plays a critical role in recognition stability. Modern optical sensors integrate high-speed processors and optimized algorithms to handle image processing, feature extraction, template generation, and matching internally.

A well-optimized algorithm reduces the workload on your main controller and improves overall system responsiveness.

Conclusion

Choosing the right optical fingerprint sensor is not about selecting the highest specification available. It is about balancing resolution, speed, capacity, environment tolerance, and integration requirements based on your specific project.

By carefully reviewing these technical factors early in development, you can reduce redesign risks, improve product reliability, and deliver a smoother user experience.
