Fingerprint authentication has become a standard feature in modern access control systems, from office buildings to residential complexes. When selecting a module, manufacturers and system integrators often compare two mainstream technologies: optical and capacitive fingerprint sensors.

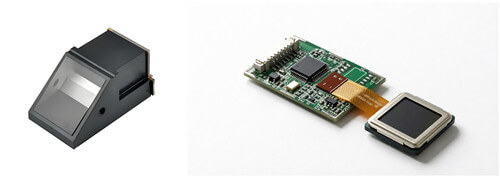

An optical fingerprint sensor module captures a 2D image of the fingerprint using light reflection, while a capacitive module detects differences in electrical charge between ridges and valleys of the skin. Each technology has strengths and trade-offs. Understanding these differences helps you select the most suitable solution for your specific access control application.
Optical modules use a light source and image sensor to capture a visual image of the fingerprint. The ridges reflect light differently than the valleys, forming a high-contrast image for matching. Because the technology is image-based, it is stable, mature, and widely used in access control terminals and time attendance devices.
Capacitive modules rely on tiny capacitor arrays that measure electrical differences caused by the fingerprint’s ridges and valleys. They do not capture a visual image but instead generate a digital pattern based on electrical signals.
| Factor | Optical Module | Capacitive Module |
|---|---|---|
| Cost | Generally lower for bulk production | Usually higher |
| Durability | Strong resistance to electrostatic damage | More sensitive to ESD |
| Outdoor Use | Stable with proper sealing | May be affected by moisture or static |
| Image Quality | Clear 2D fingerprint image | High accuracy signal detection |
| Maintenance | Surface cleaning required | Less affected by surface scratches |
For high-traffic access control systems, durability and cost efficiency are often more important than ultra-compact size. In such cases, optical modules are commonly selected due to their structural simplicity and stable performance.
Access control devices are frequently installed at building entrances, factory gates, or outdoor perimeters. Environmental factors such as dust, humidity, and temperature fluctuations should be considered.
Optical sensors perform reliably when protected by hardened glass and proper sealing. However, water droplets or strong direct sunlight may affect image capture if not properly designed. Capacitive sensors, on the other hand, can be sensitive to static electricity and extreme dryness.
When choosing a fingerprint module, integration requirements are equally important. Consider:
Communication interface (UART, USB, SPI)
Template storage capacity
Matching speed and FAR/FRR performance
SDK availability for your operating system
Power consumption requirements
Optical modules are widely supported in embedded Linux and microcontroller-based systems. Their mature algorithms and broad compatibility make integration relatively straightforward for access control manufacturers.
For large-scale deployments such as office buildings, schools, or factories, even small differences in module pricing can significantly impact total project cost. Optical fingerprint modules are often preferred in these scenarios due to competitive pricing and consistent performance.
Capacitive modules may be more suitable for compact consumer electronics where space-saving and sleek design are critical.
There is no universal “best” fingerprint module for every access control system. The right choice depends on installation environment, budget, durability requirements, and integration needs.
For most commercial and industrial access control applications, optical fingerprint modules offer a balanced combination of cost efficiency, reliability, and ease of integration. Capacitive modules may be advantageous where compact size and advanced signal detection are priorities.
By evaluating your project’s technical and environmental requirements carefully, you can select a fingerprint solution that ensures stable performance and long-term reliability.
