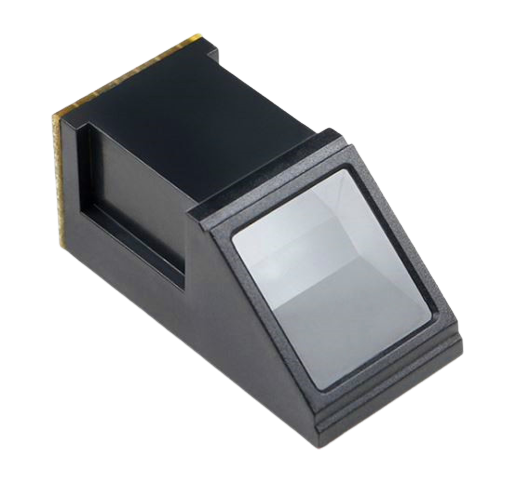

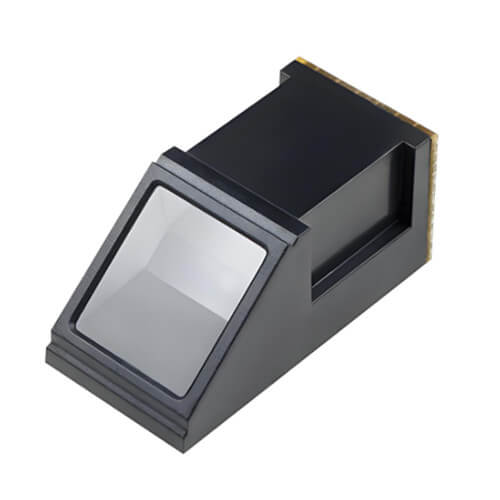

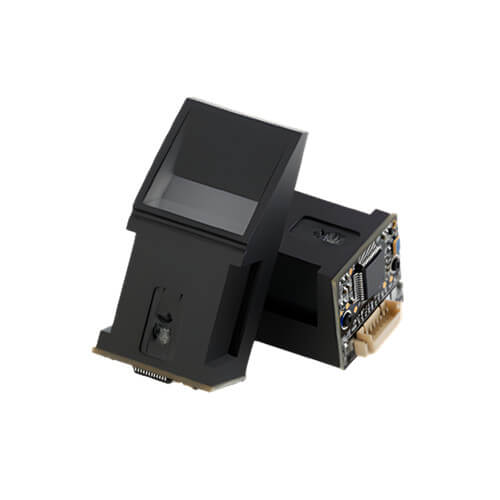

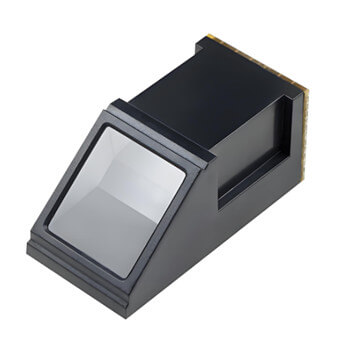

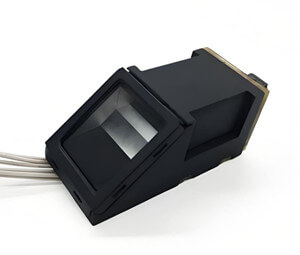

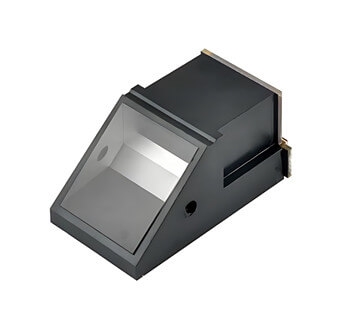

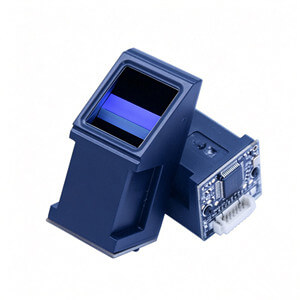

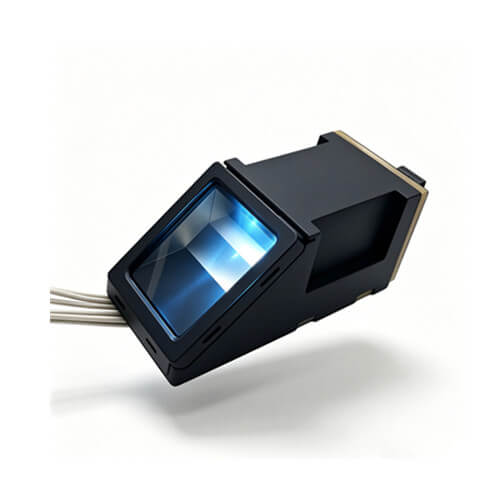

Our optical fingerprint sensor module is a compact and reliable biometric solution designed for fast, accurate, and secure fingerprint recognition. By integrating advanced optical imaging technology with onboard fingerprint processing, this module delivers stable performance for a wide range of embedded and access control applications.
This optical fingerprint module combines fingerprint image capture, feature extraction, template storage, and matching into a single unit. With support for both 1:1 and 1:N comparison modes, it functions as a high-performance optical fingerprint scanner suitable for systems requiring quick response and dependable security.
Thanks to its optimized algorithm and configurable security levels, the module achieves an excellent balance between recognition speed and accuracy, making it ideal for real-world biometric deployments.
High Template Capacity: Supports up to 500 or 3000 fingerprint templates depending on configuration.
Fast Recognition Speed: 1:N comparison of 500 templates completed in under 0.5 seconds.
Low FAR & FRR: FAR < 0.001% and FRR < 2% at Security Level 3.
Adjustable Security Levels: Five security levels available to meet different application requirements.
Compact & Embedded Design: Easy integration into space-limited electronic products.
Standard Communication: UART interface with 3.3V TTL logic, USB optional.
| Parameter | Specification |
|---|---|
| Fingerprint Sensor Type | Optical Fingerprint Sensor |
| Image Resolution | 266 × 242 pixels |
| Template Capacity | 500 / 3000 fingerprints |
| Template Size | 498 bytes |
| Comparison Mode | 1:1, 1:N |
| Recognition Speed | 1:N (500 templates) < 0.5s |
| Security Levels | Level 1 – Level 5 (Default: Level 3) |
| Communication Interface | UART (3.3V TTL), USB optional |
| Baud Rate | 9600 – 115200 bps (Default: 115200 bps) |
| Operating Voltage | DC 3.3V ±10% |
| Operating Current | < 40mA |
| Working Environment | -10°C to 60°C, 20% – 80% RH |
As a versatile optical fingerprint reader, this module is widely used in security and identity verification systems, including:
Fingerprint access control terminals
Time and attendance systems
Electronic door locks and smart safes
Embedded biometric authentication devices
Consumer and industrial security products
Learn more about our full range of biometric solutions on our Biometric Modules page.
Compared with traditional fingerprint solutions, our optical fingerprint sensor module offers stable optical imaging, strong anti-interference capability, and consistent performance across different environments. It is designed for long-term operation, easy system integration, and reliable biometric authentication.
For datasheets, pricing, or customization options, please contact our sales team.
An optical fingerprint sensor module is a biometric device that captures fingerprint images using optical imaging technology and performs fingerprint recognition through integrated processing and matching algorithms. It combines image acquisition, feature extraction, template storage, and comparison in a single embedded module.
Optical fingerprint sensors offer stable image quality, good resistance to environmental interference, and consistent performance across different users. They are widely used in access control and embedded systems due to their reliability and mature technology.
The module supports a fingerprint template capacity of up to 500 or 3000 fingerprints, depending on the selected configuration. This makes it suitable for both small-scale and medium-size biometric systems.
Yes. The optical fingerprint sensor module supports both 1:1 verification and 1:N identification modes. In 1:N mode, matching against 500 stored templates can be completed in under 0.5 seconds.
At the default security level, the module delivers a False Accept Rate (FAR) of less than 0.001% and a False Reject Rate (FRR) of less than 2%, providing a good balance between security and user convenience.
Yes. The security level can be configured from Level 1 to Level 5. Higher levels increase security by applying stricter matching thresholds, while lower levels improve recognition tolerance in demanding environments.
The module communicates through a standard UART interface with 3.3V TTL logic levels. A USB interface is also available as an optional configuration for systems that require USB communication.
Yes. The compact size, low power consumption, and standard serial communication make this optical fingerprint module well suited for embedded systems, including access controllers, electronic locks, and industrial terminals.
The module is designed to operate in temperatures from -10°C to 60°C, with a relative humidity range of 20% to 80%. This allows stable operation in most indoor and semi-outdoor environments.
Yes. Detailed command protocols, integration guides, and technical support are available to assist with system development and product integration.
