FPC1020 fingerprint module

FPC1020 fingerprint module adopts capacitive sensor and high-performance processor, with high compatibility, fast acquisition speed, strong anti-counterfeiting ability, simple use, low power consumption and so on.

Overview

FPC1020 fingerprint module is a high-end semiconductor fingerprint identification module developed by IDWorld company. Compact structure, support embedded systems, Windows systems and a variety of Android system equipment, using standard USB/UART communication, with SDK development package, can easily achieve all customer fingerprint recognition function requirements. Running a new generation of high-performance IDFinger fingerprint recognition algorithm, fingerprint recognition speed is fast and accuracy is high. The product adopts Swedish FPC fingerprint sensor, which has the characteristics of clear image and high quality. IDFinger fingerprint recognition algorithm is widely praised, especially with self-learning function. In the process of fingerprint recognition, the newly extracted fingerprint eigenvalues are fused into the fingerprint database after successful identification, so that users can use them more and more easily in the process of fingerprint recognition.

Applications

Electronic door lock

Access control attendance

Drawer lock

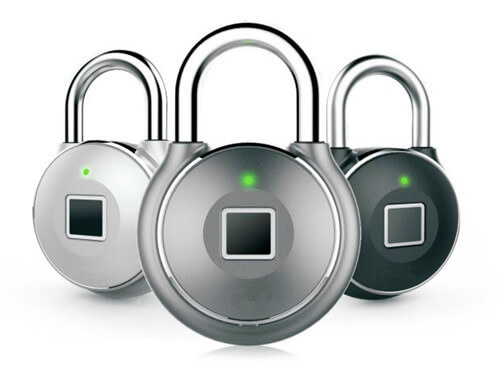

Fingerprint padlock

Specifications

Model: IDWD1020

CPU: ID809/808

Fingerprint sensor: dpi: 508 pixels: 192*192

Fingerprint capacity: 80/200/500

FAR:Less than0.001% (Security Level is 3)

FRR:Less than2% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size: 448 Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction timeLess than1 second 1: N comparison time (when 200 full registrations) Less than0.8 second

Communication interface: UART, 3.3V-TTL level

Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current:Less than40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%

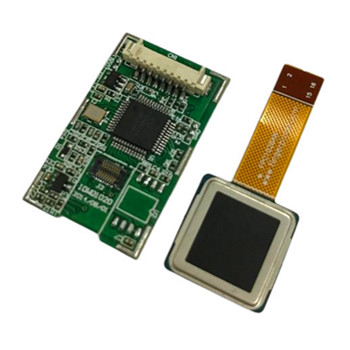

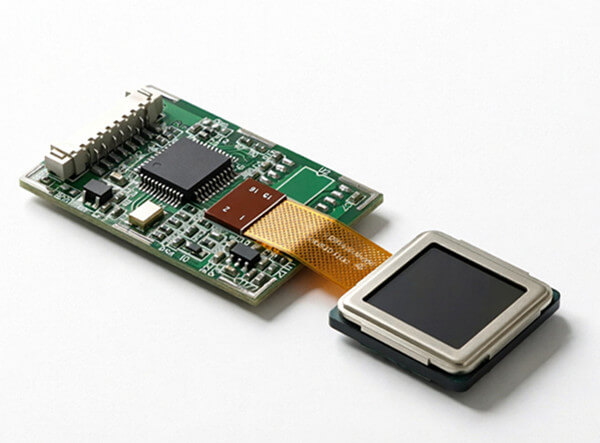

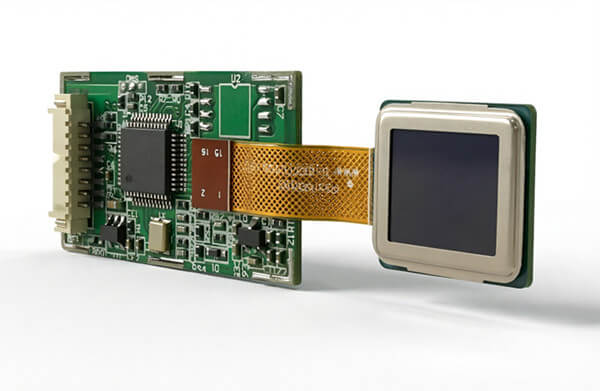

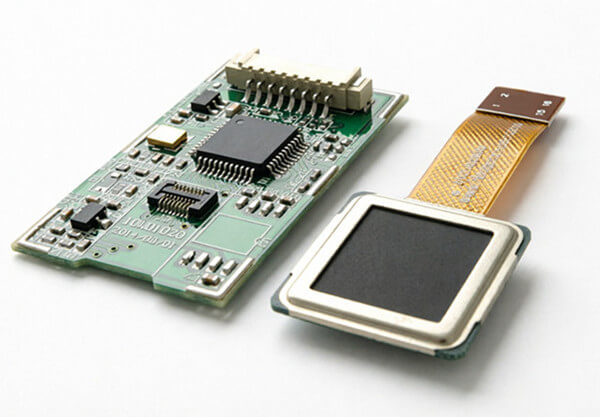

Photos

Packing list

PH1.25 8P Cable

FPC1020 fingerprint module
