arduino fingerprint module

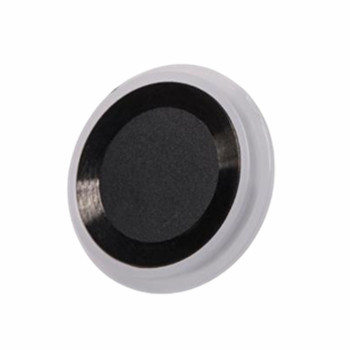

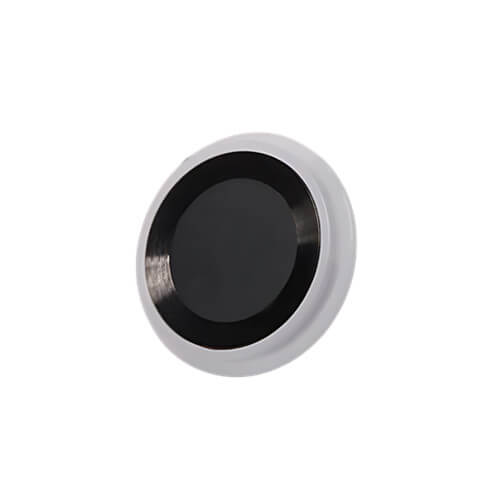

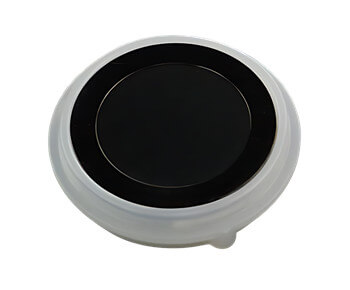

The arduino fingerprint module  IDWD1016R is a cost-effective semiconductor fingerprint recognition module and designed by Beijing IDWorld Technology Development Co., Ltd. This module has simple structure and powerful functions. With the host computer, it can complete fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (including 1:1 and 1:N), fingerprint deletion and other functions. The module uses a semiconductor fingerprint sensor, with clear fingerprint images and strong adaptability to various types of fingers. It runs the IDFinger high-performance fingerprint core algorithm, which is widely praised in the industry, and adopts high-speed CPU. It has the characteristics of high anti-counterfeiting performance, fast collection speed, strong adaptability, and simple development. The IDWD1016R communication protocol is simple and reliable. The standard UART protocol can be used to connect different upper-level devices. You can embed the fingerprint module into your intelligent products with simple peripheral circuits, so that your products have strong fingerprint recognition capabilities.

APPLICATIONS

Fingerprint access control system

Fingerprint attendance machine

Fingerprint door lock

Fingerprint padlock

Fingerprint safe

SPECIFICATION

Model: IDWD1016

CPU: ID809/811

Fingerprint sensor: dpi: 508 pixels: 160*160

Fingerprint capacity: 80/200/500

FAR:Less than0.001% (Security Level is 3)

FRR:Less than2% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size: 1008 Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction timeLess than1 second 1: N comparison time (when 200 full registrations) Less than0.8 second

Communication interface: UART, 3.3V-TTL level

Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current:Less than40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%zhi

Dimension

Packing list

1.0mm-6PIN cable
