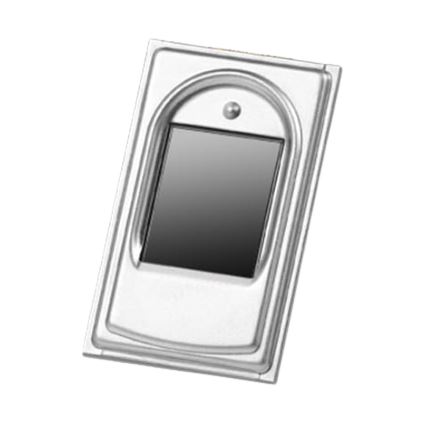

Android Fingerprint Reader

The android fingerprint reader ID1019 is an all-in-one fingerprint module with an integrated capacitive fingerprint sensor, fingerprint algorithm and microprocessor. It interfaces with the host computer via a UART interface for image acquisition, feature extraction, template generation, fingerprint entry, verification and identification. The easy to use control protocol facilitates secondary development and allows for fast module design into the user's product, allowing for flexible fingerprint applications.

Features

Maximum capacity of 500 fingerprints

Fingerprint recognition speed: 0.35S@1:100

Dynamic update of fingerprint template data

Support for fingerprint template import and export

Support wake-up by touch function

Specifications

Number of stored fingerprints up to 500

1:1 verification time of approx. 200-300ms

Communication with the host computer by UART, USB and SPI (default UART)

Android fingerprint readerCapacitive sensor

Pixel resolution of the sensor is 508dpi

Sensor pixel count is 192x192

Fingerprint detection area 9.6mm x 9.6mm

360° fingerprint recording and matching

Sensor bezel size is 12.8mm x 12.8mm

Scratch resistance of the sensor is 6H

Anti-static rating of +/-15kV

Operating environment is -40-60°C/Less thanRH 90%

Dimensions are 33.2mm long, 20.4mm wide and 6.1mm high

Applications

Android fingerprint reader ID1019 application areas: semiconductor fingerprint locks, fingerprint access control, fingerprint KEY, bank teller management system, security, education and other handheld mobile terminal POS machines, etc.
