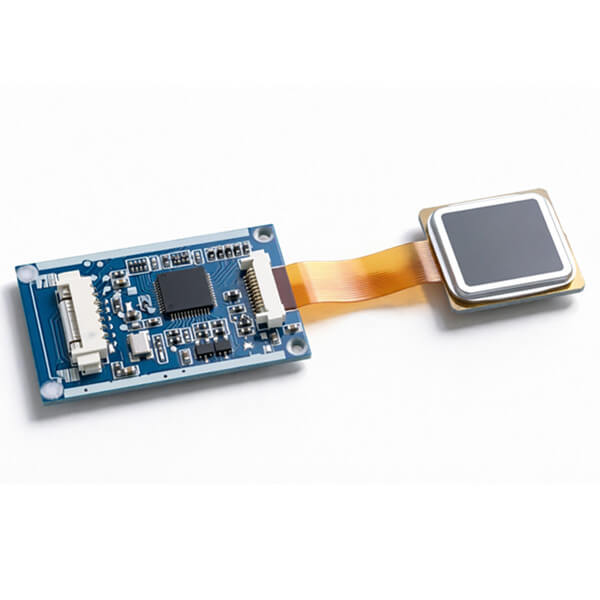

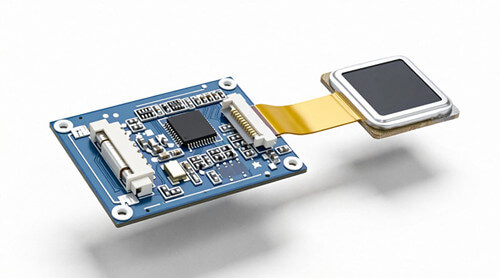

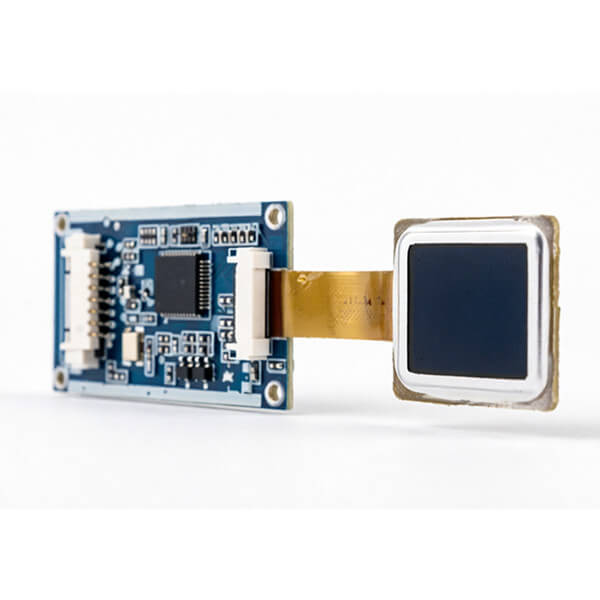

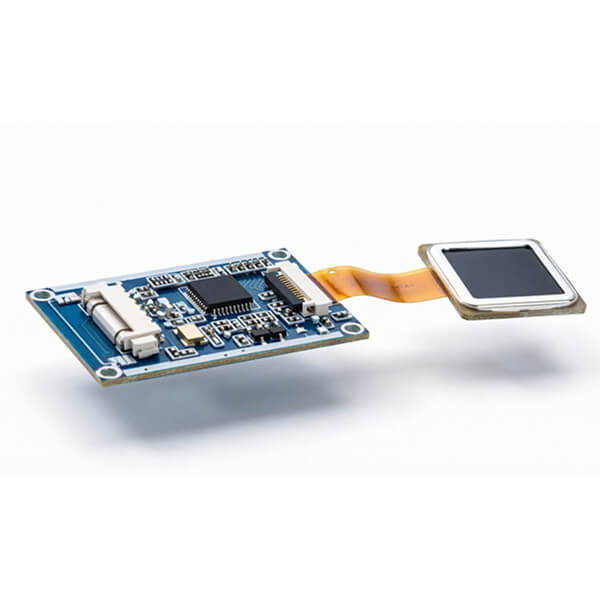

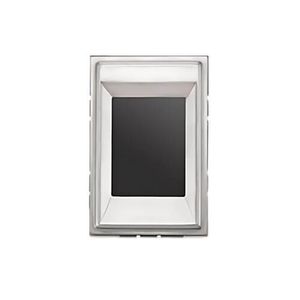

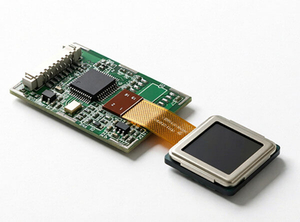

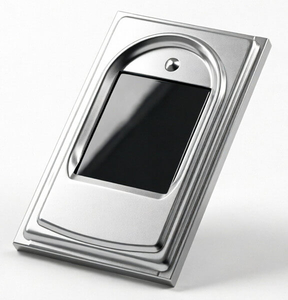

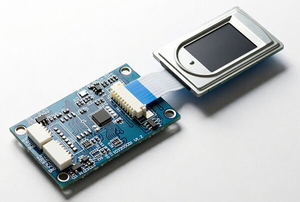

The ID1020B fingerprint reader module is a compact, high‑performance capacitive fingerprint sensor module designed for fast, accurate and secure biometric identification. Powered by the advanced ID809 fingerprint algorithm chip, it delivers excellent image quality, strong anti‑spoofing capability, and reliable performance across dry, wet and difficult fingerprints.
High‑performance core: Dedicated 32‑bit ARM processor up to 120MHz ensures fast fingerprint processing.
Capacitive fingerprint scanner: Ultra‑high image quality with 508dpi resolution.
Self‑learning fingerprint algorithm: Automatically adapts to fingerprint changes over time.
Fast and accurate recognition: Supports 1:1 and 1:N fingerprint matching.
Excellent adaptability: Reliable performance for dry, wet and worn fingerprints.
High security: Low FAR and FRR with adjustable security levels.
Compact design: Small size enables easy integration into space‑constrained products.
Easy development: Complete SDK provided for rapid integration.
This capacitive fingerprint scanner module captures detailed fingerprint images through a high‑resolution capacitive sensor. Combined with the IDWDfinger core algorithm, the module supports automatic fingerprint correction and 360° rotation recognition, ensuring consistent performance regardless of finger placement.
Unlike optical solutions, capacitive sensing improves anti‑counterfeiting performance and enables stable operation in challenging environments.
| Item | Specification |
|---|---|
| Model | ID1020B |
| CPU | 32‑bit ARM Core (up to 120MHz) |
| Sensor Type | Capacitive Fingerprint Scanner |
| Effective Area | 9.6 × 9.6 mm |
| Image Size | 192 × 192 pixels |
| Image Resolution | 508 dpi |
| Fingerprint Capacity | 170 / 500 / 1000 templates |
| False Acceptance Rate (FAR) | < 0.001% (Security Level 3) |
| False Rejection Rate (FRR) | < 2% (Security Level 3) |
| Template Size | 448 bytes |
| Fingerprint Registration Time | < 3 seconds |
| Matching Method | 1:1 / 1:N |
| Matching Time | < 0.2s (1:1), < 0.5s (1:170) |
| Communication Interface | UART (3.3V TTL), USB |
| Baud Rate | 9600 – 115200 bps (Default: 115200) |
| Operating Voltage | DC 3.3V ±10% |
| Operating Current | Approx. 550mA |
| ESD Protection | ±8KV Contact / ±15KV Air |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 20% – 93% RH |
The fingerprint reader module supports multiple operating systems, enabling flexible integration:
Windows
Android
Linux
Embedded systems
Learn more about fingerprint sensor module and fingerprint sensor
Electronic door locks
Access control systems
Attendance and time recording devices
POS machines
Smart terminals and IoT devices
With a compact form factor, high‑security fingerprint algorithm and proven capacitive sensing technology, the ID1020B fingerprint reader module is an ideal choice for manufacturers seeking a reliable fingerprint scanner module for mass production and long‑term deployment.
The ID1020B is a compact fingerprint reader module that integrates a high‑resolution capacitive fingerprint sensor with a dedicated ARM processing core and a self‑learning fingerprint algorithm. It is designed for fast, accurate and secure fingerprint identification in embedded and commercial devices.
This module uses a capacitive fingerprint sensor. Compared with optical sensors, capacitive technology provides better image clarity, stronger anti‑spoofing performance, and more stable operation under dry, wet or worn finger conditions.
Yes. The built‑in IDWDfinger algorithm supports adaptive learning. When a user’s fingerprint slightly changes due to aging, skin condition or long‑term use, the module can automatically update fingerprint features during successful verification, improving long‑term recognition accuracy.
The fingerprint scanner module supports both 1:1 and 1:N matching modes. This makes it suitable for applications such as personal authentication, access control systems, and multi‑user identification devices.
Typical comparison time is less than 0.2 seconds for 1:1 matching, and less than 0.5 seconds for 1:N matching with up to 170 fingerprint templates. This ensures a smooth user experience even in high‑traffic scenarios.
Depending on the configuration, the fingerprint reader module can store 170, 500 or up to 1000 fingerprint templates. Each fingerprint template occupies 448 bytes of internal memory.
The module supports UART (3.3V TTL level) and USB communication. Multiple baud rates are available, with 115200 bps as the factory default, allowing easy integration with microcontrollers, embedded boards and host systems.
This fingerprint sensor module supports development under Windows, Android, Linux and various embedded operating systems. A complete SDK and communication protocol documentation are provided for fast integration.
Yes. The module offers adjustable security levels from Level 1 to Level 5. At the default Level 3, the false acceptance rate (FAR) is below 0.001%, making it suitable for electronic door locks, access control and POS terminals.
Common applications include electronic door locks, attendance systems, access control panels, POS machines, smart terminals and IoT devices that require reliable biometric authentication.
Yes. We provide SDKs, command documentation and integration guidance. Our engineering team can also assist with evaluation, firmware configuration and production deployment if required.
