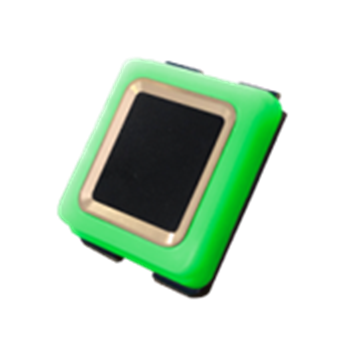

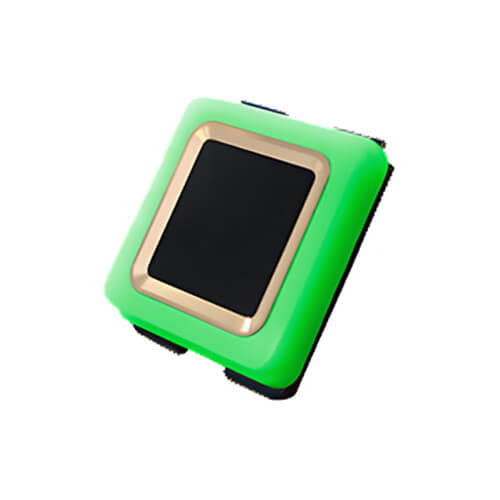

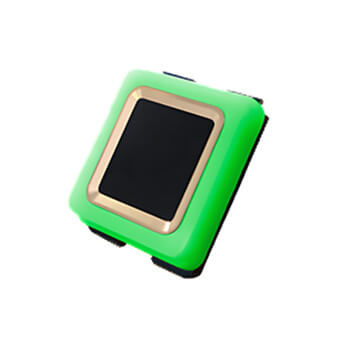

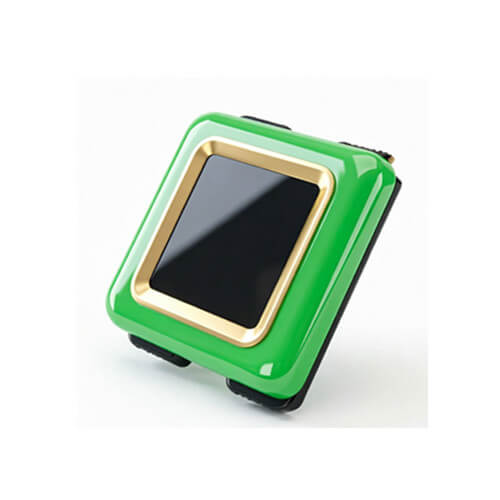

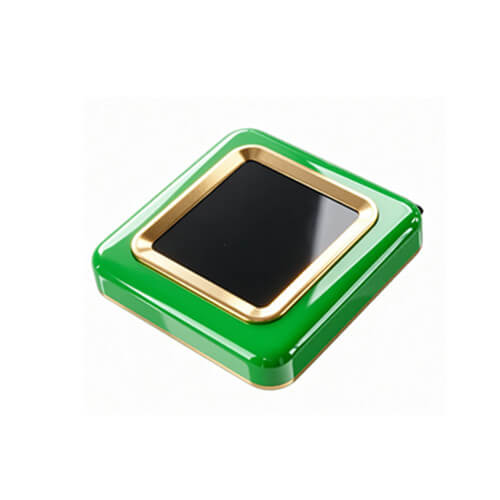

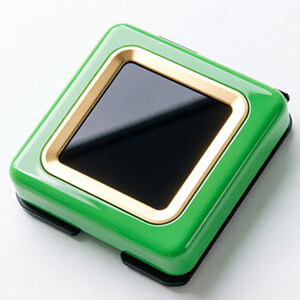

The fingerprint sensor module ID1019 is a capacitive fingerprint development module dedicated to secondary development and integrated applications, with high speed, fast recognition and high stability. The main control adopts high-performance Cortex core, combined with the high-security IDFinger fingerprint algorithm, is equipped with advanced semiconductor fingerprint sensor, and has an intelligent integrated module with fingerprint entry, image processing, template generation, template storage, fingerprint comparison and search functions; It is specialized in providing standard secondary development fingerprint components for scientific research units, fingerprint product manufacturers, and application integration manufacturers to quickly and easily integrate applications. Easy to use, no need to understand fingerprint technology, internal structure and operation of the module, only simple instructions can complete the corresponding operation, provide a complete supporting information manual (with related instruction documents, related tools and sample programs
Ring LED indicator light, beautiful and generous
Modular design, simple structure
It integrates fingerprint collection, storage and identification
High integration, small size, strong stability, low power consumption
Running high security fingerprint algorithm, fast identification speed, high accuracy
Standard UART interface, secondary application development is simple and convenient
CPU | 240Mhz clock frequency, ID 821 |
Fingerprint scanner | capacitive |
Fingerprint image size | 192 X 192 (pixels), 508DPI |
Fingerprint registration capacity | 1,000 entries |
False acceptance rate (FAR) | <0.001% (security level = 3) |
False rejection rate (FRR) | <2% (security level = 3) |
Matching method | 1:N and 1:1 matching; |
Fingerprint template size | 448 bytes |
Security level setting | Level 1 to Level 5 adjustable, factory setting: Level 3 |
Processing speed | Fingerprint feature extraction time < 0.45 seconds; 1:N matching time (for 3,000 registered entries) < 1.5 seconds; |
Communication interface | UART, 3.3V-TTL level or USB communication; |
Serial communication parameters | Baud rate: 9600, 19,200, 38,400, 57,600, 115,200 (bps) Factory setting: 115,200 bps |
Operating voltage | Vin voltage: DC3.3V +/- 10% (can be customized for 5V power supply) |
Operating current | Less than 30mA, peak current less than 80mA (instantaneous current during fingerprint acquisition) |
Standby current | Less than 10uA; |
Operating environment | Operating temperature: -10~60 degrees Celsius; |
Relative humidity | 20%~80%. |
Fingerprint sensor module is widely integrated in access control systems, attendance machines, smart locks, drawer locks, safes and other products.
