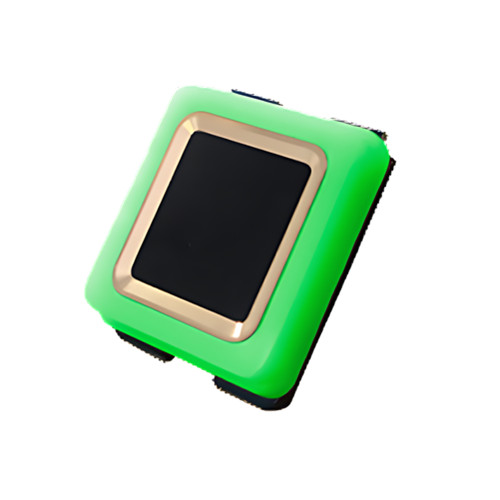

Why choose our fingerprint sensor module for arduino?
Industrial-grade accuracy
Capacitive fingerprint sensor with a resolution of 508DPI, allowing accurate identification of dry and wet fingers
0.3 seconds lightning unlock
The optimized algorithm achieves milliseconds comparison, which is faster than traditional modules
Super environmental adaptability
Wide temperature operation from-20℃ to 65℃
Adaptive to strong light and low light environments
Open ecosystem
Standard Uart/Usb communication
Compatible with Windows/Android/Linux systems
Industry Solutions
Smart home field
"By integrating the fingerprint sensor module for arduino into smart door locks, our customers have achieved:
· Household trespassing rates drop
· High praise rate from users
Enterprise Security Management
"A bank uses this module to upgrade its treasury security system:
· Zero for misrecognition events
· Improved efficiency of personnel traffic
technical parameters
Name | ID1016F |
Sensor | Capacitive |
Sensing Area | 8*8mm |
Fingerprint Image | Image Size: 160* 160pixels Resolution: 508 dpi |
Fingerprint storage capacity | 500ID |
Fingerprint template size | 1008 bytes |
FAR | <0.001% |
FRR | <2% |
Enrollment Time | <3s |
Matching Time | <0.1s (1:1), <0.5s (1:N ,100) |
Matching Mode | 1:1/1:N |
Interface | UART |
Supply Voltage | 3.3V |
Current Consumption | <55mA |
ESD | Contact: + 8KV Air: ±15KV |
Operating Temperature | -10°C ~55°C |
Storage Temperature | -40°C ~60°C |
Operating Humidity | 20~90% R.H |
Storage Humidity | 17~96% R.H |
Supported Operating Systems | Windows, Android, Linux, Embedded systems |
Customer Common Questions
Q: How much power does the fingerprint sensor module for arduino consume?
A: Standby power consumption is only micro-amps, and it is milliamps when comparing registration.
Q: Do you support secondary development?
A: Provides a complete development package, including communication instruction set, Demo and source code, and has served 300+ corporate customers
