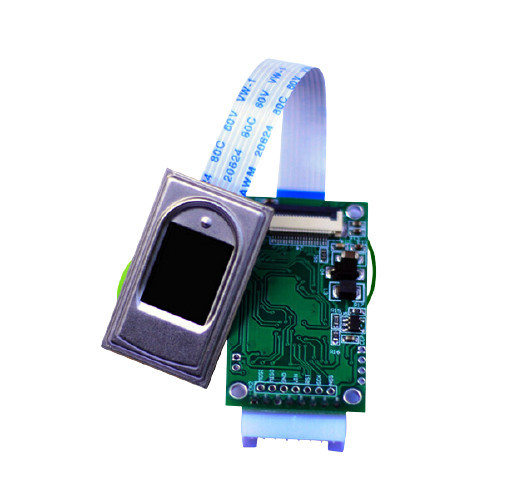

Biometric Fingerprint Module

Biometric fingerprint module IDWD1011 is a new fingerprint module dedicated to the secondary development of integrated applications, with fast running speed, fast identification and good stability. IDWD1011 takes ID809/808 high-speed digital processor as the core, combined with the new generation IDFinget fingerprint recognition algorithm, Sweden FPC1011 semiconductor fingerprint sensor, fingerprint module with the functions of fingerprint input, image processing, eigenvalue extraction, template generation, template storage, fingerprint comparison and search, and provides UART interface and communication protocol, which is convenient for users to develop and integrate.

Features

Large capacity, can store up to 3000 fingerprints

Using the new generation of IDFinger fingerprint algorithm, the identification is accurate and fast

Small size, can be flexibly embedded in a variety of volume limited products;

High electrostatic voltage resistance, strong anti-interference ability, solid shape;

The algorithm supports self-learning and 360° rotation collection and comparison.

Adopt standard USB/UART communication, provide complete SDK development kit, secondary development is simple;

Specifications

technical parameter:

project description

Model: IDWD1011

CPU: ID809/808

Fingerprint sensor: dpi: 363 pixels: 200*152

Fingerprint capacity: 500/1700/3000

FAR:<0.001% (Security Level is 3)

FRR:<2% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size:498 Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction time<1 second 1: N comparison time (when 200 full registrations) <0.8 second

Communication interface: UART, 3.3V-TTL level

Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current:<40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%

Applications

Fingerprint Identification Module IDWD1011 provides standard secondary development fingerprint kit for fingerprint door lock, safe, fingerprint U disk, fingerprint key and other manufacturers, which is fast and convenient for integrated application.

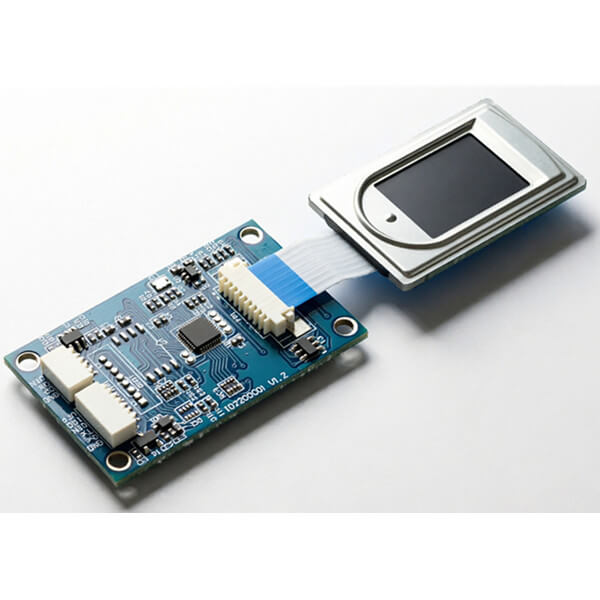

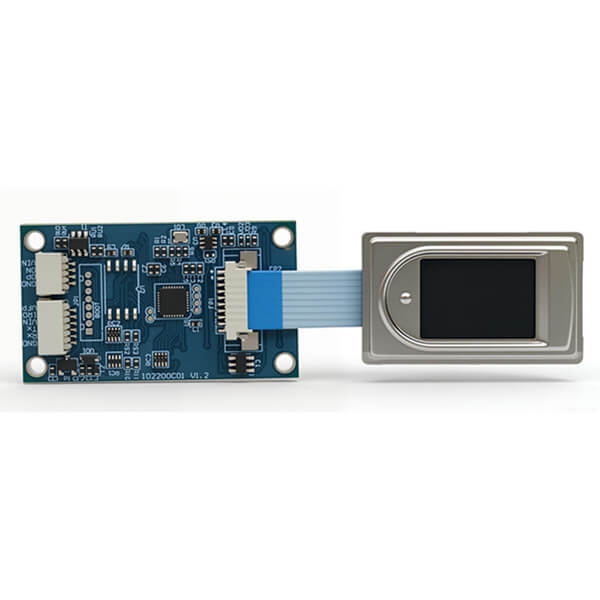

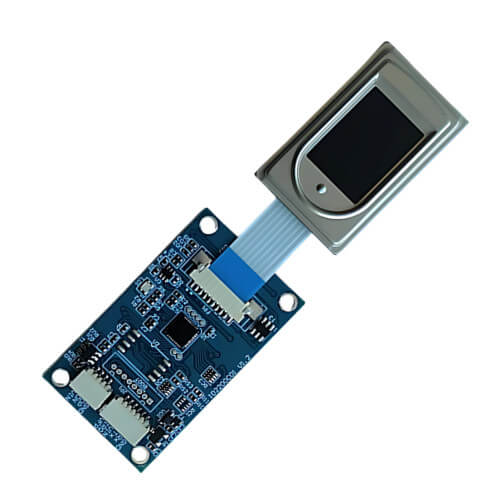

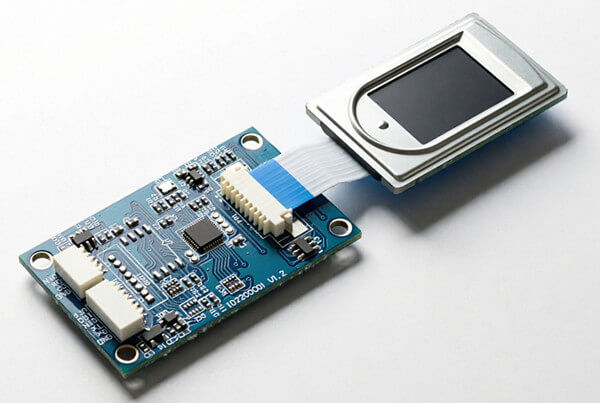

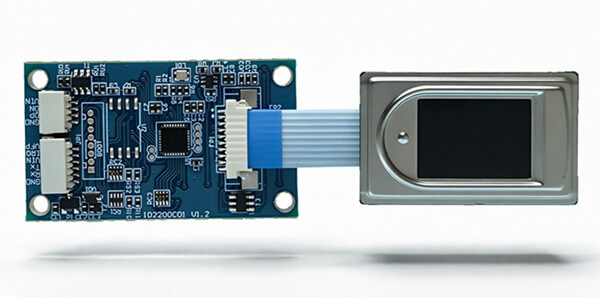

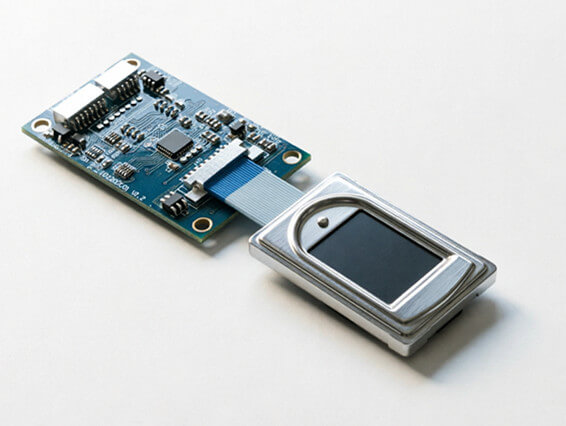

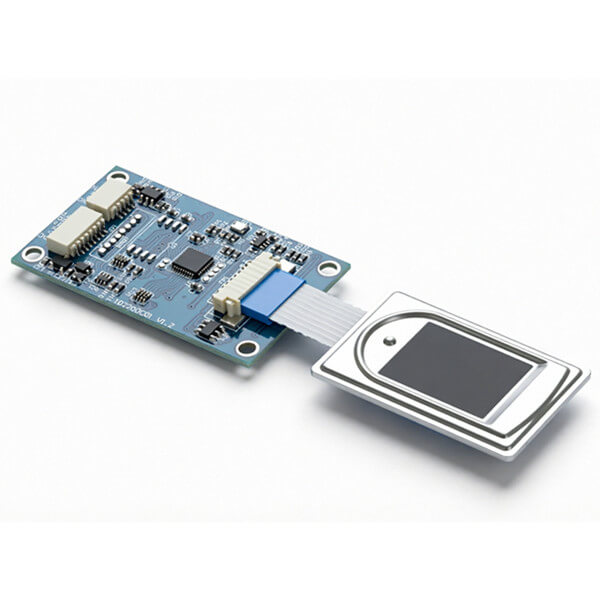

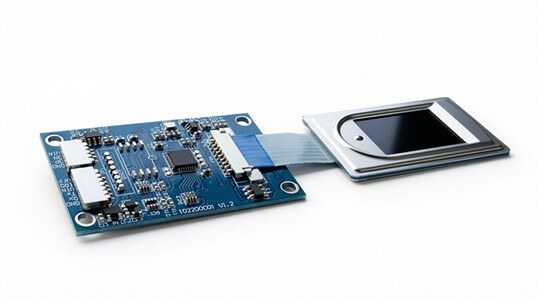

Photos

Packing list

2.0mm-8PIN cable

Biometric fingerprint module
