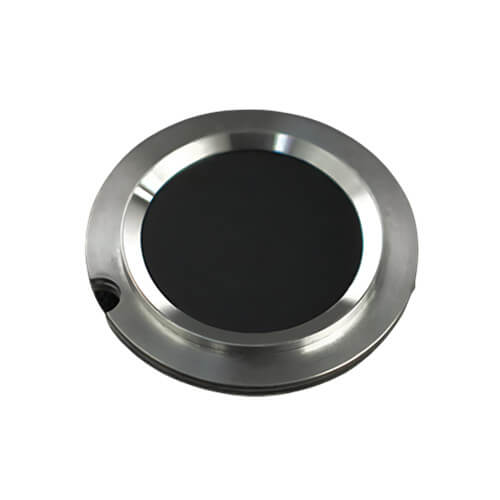

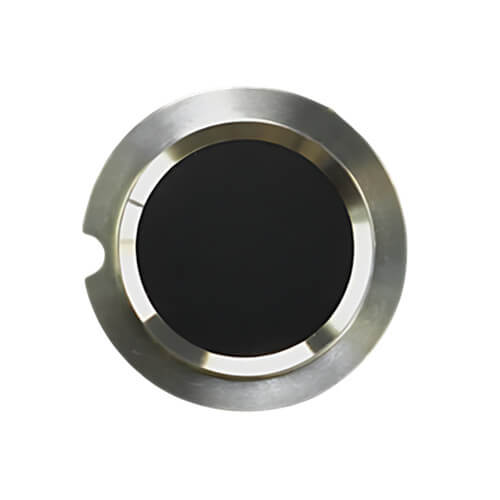

The IDWorld UART Fingerprint Reader ID1016 module integrates both the motherboard and sensor into a compact design, offering a versatile solution for embedded systems with limited space. It incorporates advanced functions including fingerprint collection, image processing, feature extraction, fingerprint registration, comparison, and deletion. Ideal for applications such as fingerprint locks, attendance systems, and self-service terminals.
Advanced Fingerprint Algorithm: The ID1016 uses the latest IDFingerV6.0 fingerprint recognition algorithm, delivering an intelligent self-learning capability that improves recognition accuracy over time.
Fast and Accurate Recognition: With a recognition time of less than 0.1 seconds for 1:1 matching and less than 0.5 seconds for 1:N (up to 80 fingerprints), the ID1016 offers rapid identification with a<2% False Rejection Rate (FRR) and a <0.001% False Acceptance Rate (FAR).
High Recognition Accuracy: The sensor's high-resolution fingerprint images (508 dpi) ensure accurate feature extraction, even for challenging conditions such as wet or dry fingers.
Compact and Flexible Design: The ID1016 features a small footprint, making it easily integrable into products where space is a constraint.
360° Fingerprint Collection: The module supports 360° rotation collection and comparison, offering greater flexibility and ease of use in real-world environments.
| Parameter | Specification |
|---|---|
| Model | ID1016 |
| Sensor Type | Semiconductor capacitive |
| Acquisition Window Size | 12.8mm x 12.8mm |
| Effective Image Size | 8mm x 8mm |
| Image Resolution | 508 dpi |
| Image Size | 160x160 pixels |
| Recognition Time | < 0.1 sec (1:1), < 0.5 sec (1:N, 80 fingerprints) |
| User Capacity | 80/200 |
| Registration Time | < 3 sec |
| Communication Interface | UART |
| Supported Systems | Windows, Android, Embedded |
| Operating Voltage | DC 3.3V |
| Operating Current | < 40 mA |
| Operating Temperature | -10°C to 65°C |
| Operating Humidity | 20 - 93% R.H |
| Storage Humidity | 20 - 93% R.H |
The ID1016 UART Fingerprint Reader is ideal for use in a variety of security and authentication systems, including:
Fingerprint locks
Attendance and access control systems
Smart terminals
Self-service devices
For more information or to inquire about purchasing the ID1016 module, please contact us or visit our product page.
