Author: IDWorld Publish Time: 2026-06-15 Origin: Site
Building a reliable smart lock requires balancing security, power consumption, and user experience. The core of this system is the biometric sensor. For developers, choosing the right interface and knowing how to connect it properly saves weeks of debugging.
Most industrial-grade sensors offer UART or USB interfaces. In this guide, we will walk through the practical steps of integrating an optical fingerprint module into your smart lock architecture, ensuring fast matching speeds and stable performance.
Before wiring, you need to decide how the module will communicate with your main microcontroller unit (MCU).
UART (TTL): The go-to choice for most battery-powered smart locks. It consumes very little power and connects easily to standard MCUs (like ARM Cortex-M, ESP32, or STM32).
USB: Better suited for advanced access control systems running embedded Linux or Android, where you need to transfer larger amounts of data quickly.
Let's look at a standard UART integration. Most high-quality modules operate on a standard DC 3.3V supply. Providing clean and stable power is critical; voltage drops can cause the sensor to fail during image capture.

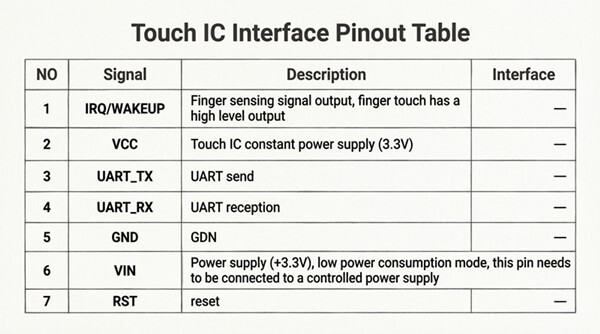

A typical 4-pin UART connection looks like this:
VCC: Connect to 3.3V (Ensure your power supply can handle peak currents of around 35mA during scanning).
GND: Connect to common ground.
TX (Transmit): Connect to the MCU's RX pin.
RX (Receive): Connect to the MCU's TX pin.
Once wired, you need to establish communication. The default baud rate for many high-speed modules is 115200 bps. You can usually configure this down to 9600 bps if your MCU requires it, but 115200 is recommended for faster response times.
The workflow in your code will generally follow this sequence:
Wake up: The MCU detects a finger touch (often via a capacitive wake-up pin) and powers up the sensor.
Capture Image: Send the command to scan the fingerprint.
Generate Template: The module processes the image into a template (usually around 498 bytes).
Search & Match (1:N): The module compares the template against its internal database. A good module will complete this in under 0.6 seconds, even with hundreds of stored prints.
Integration isn't just about making it work on a desk; it has to work on a front door for years. Here is what you need to account for:
In dry winters, users carry static electricity. Touching the lock can fry the sensor. Ensure the module you choose has built-in ESD protection. For example, modules designed for smart locks should withstand at least ±8 kV contact discharge and ±15 kV air discharge.
Users' fingerprints change slightly over time due to cuts, peeling, or seasonal changes. Instead of forcing users to re-register their fingers, use a module with a self-learning algorithm. This feature automatically updates the fingerprint template in the background every time a successful match occurs, meaning the lock gets more accurate the more it is used.
Integrating biometric security doesn't have to be complicated if you start with the right hardware. If you are looking for a compact, highly accurate sensor that supports both UART and USB, check out the ID1042 Optical Fingerprint Scanner.
Powered by the ID808 processor and the IDFinger V6.0 algorithm, it offers 360-degree recognition, robust ESD protection, and a developer-friendly SDK to get your smart lock prototype up and running in no time.
