Capacitive vs Optical Fingerprint Scanners: Which One Is Better for Your Application?

Fingerprint scanners have become a standard feature in our daily lives, securing everything from smartphones to office doors. However, not all fingerprint sensors are built the same way. If you are designing a new product or upgrading a security system, you will likely have to choose between the two most common technologies: optical and capacitive.

Both get the job done, but they use completely different methods to read a fingerprint. Let's break down how they work and see which one fits your specific needs.

How Optical Fingerprint Scanners Work

An optical scanner works essentially like a specialized digital camera. When you place your finger on the glass plate, an LED light illuminates your fingerprint. The sensor then captures a high-contrast digital photograph of the ridges and valleys of your finger.

The system compares this 2D image against the saved print in its database. If they match, access is granted.

The Pros: Optical scanners are generally cost-effective and highly durable. Because the sensor is protected by a thick layer of glass, it can withstand rough environments, making it a popular choice for outdoor access control systems or factory time-attendance machines.

The Cons: Since it relies on a 2D image, older or cheaper optical scanners can sometimes be fooled by a high-quality photograph or a prosthetic fingerprint. They also struggle if your finger is too dry, wet, or dirty, as this affects the clarity of the image.

How Capacitive Fingerprint Scanners Work

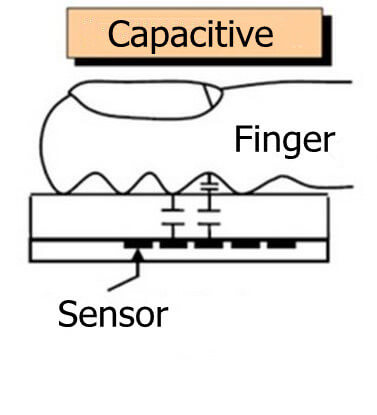

Capacitive scanners take a completely different approach. Instead of light, they use electrical current. The surface of the scanner is made up of thousands of tiny capacitors.

When your finger touches the sensor, the ridges of your fingerprint make contact with the surface, changing the electrical charge at those specific points. The valleys (the gaps between the ridges) do not touch the surface, so the charge remains unchanged. The scanner uses this electrical data to map out a highly accurate 3D image of your fingerprint.

The Pros: Security is the biggest advantage here. Because a capacitive scanner requires the physical shape and electrical conductivity of a real human finger, it is nearly impossible to fool with a printed photo or a fake mold. They are also much more compact. If you are developing a smart lock, a laptop, or a handheld device where space and security are priorities, integrating a high-quality capacitive fingerprint scanner is usually the most reliable engineering choice.

The Cons: They tend to be slightly more expensive to manufacture than optical sensors. Additionally, the protective coating on capacitive sensors is thinner than the thick glass used in optical ones, meaning they can be more susceptible to scratches over time if not handled properly.

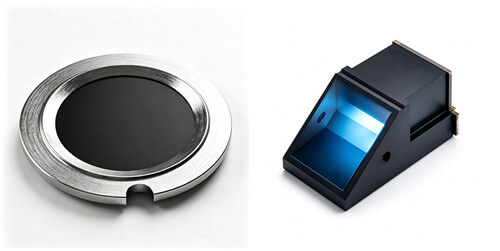

Which One Should You Choose?

The decision ultimately comes down to your application environment and security requirements.

• Choose Optical if: You are building a device for a high-traffic public area, an industrial environment, or an outdoor setting where the scanner needs to survive heavy physical wear and tear, and extreme security is not the primary concern.

• Choose Capacitive if: You are designing consumer electronics, smart home locks, or financial hardware. If anti-spoofing (preventing fake fingerprints) and compact size are critical to your product, capacitive is the clear winner.

Understanding the hardware behind biometric security helps in making the right design choices. By matching the sensor technology to your specific use case, you can ensure a better user experience and the right level of security for your product.
