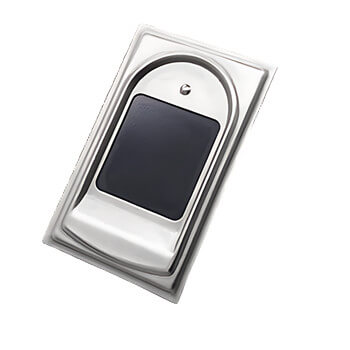

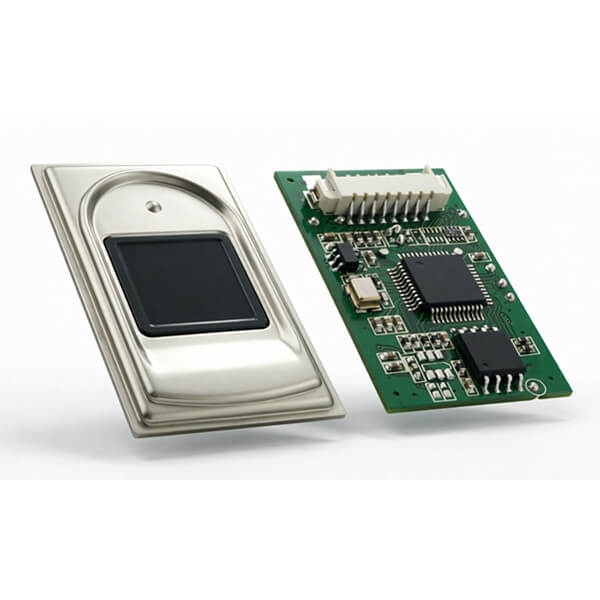

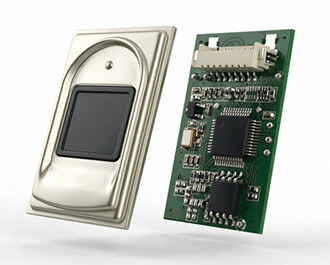

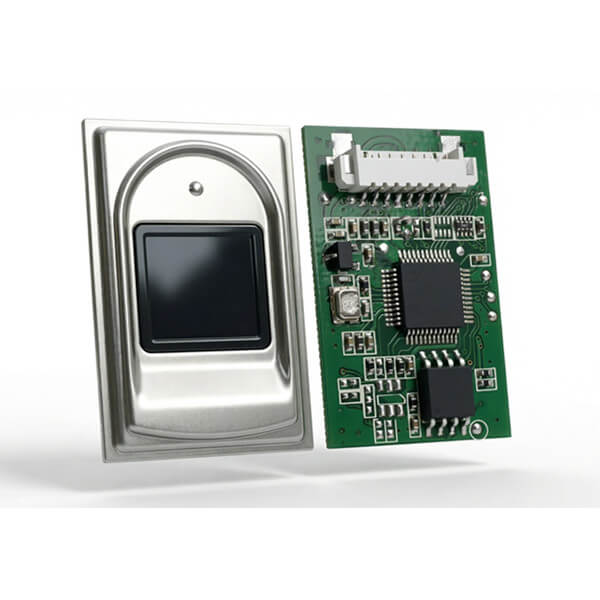

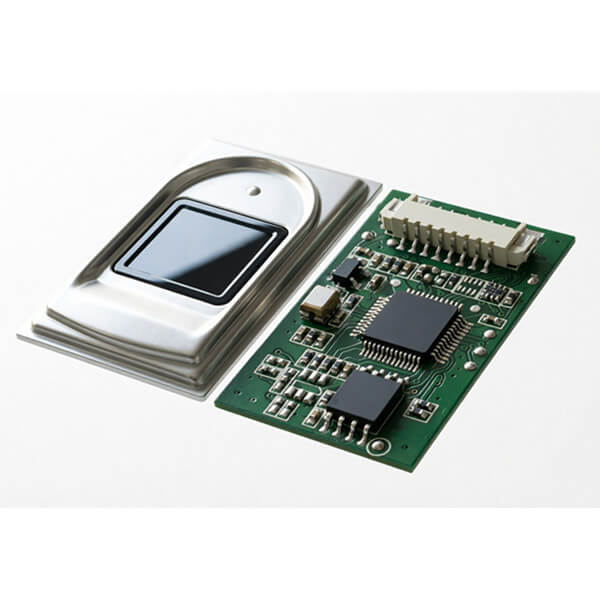

The fingerprint scanner module ID1019 is a high-performance embedded capacitive fingerprint module specially developed for various integrated devices. Take the high-performance IDFinger fingerprint algorithm as the core. ID1019 uses a high-performance ARM core processor and a semiconductor fingerprint sensor. It has the characteristics of small size, easy development, simple use, fast acquisition, high anti-counterfeiting, and rich interfaces. Fingerprint scanner module ID1019 can be easily embedded in user equipment and systems to complete fingerprint entry, image processing, Features extraction, template generation, template storage, index comparison (1:1 and 1:N), template deletion and other functions meet customer needs. IDFinger fingerprint algorithm is very good, especially with self-learning function. In the process of fingerprint identification, the newly extracted fingerprint feature value is successfully recognized and then the feature value is merged into the fingerprint database, so that the user can use it as easy as possible.
Features
The new generation of IDFinger fingerprint algorithm provides fast recognition speed and high recognition accuracy
Strong antistatic ability and good environmental adaptability
Supports 360-degree fingerprint rotation acquisition, and you can obtain a clear fingerprint image by gently pressing your finger.
Simple development, providing a complete SDK development kit, allowing you to quickly complete secondary development
Applications
Fingerprint locks
Fingerprint safes
Fingerprint access control
Fingerprint time and attendance
Technical specifications
Specifications
CPU | 240Mhz clock frequency, ID 821 |
Fingerprint scanner | capacitive |
Fingerprint image size | 192 X 192 (pixels), 508DPI |
Fingerprint registration capacity | 1,000 entries |
False acceptance rate (FAR) | <0.001% (security level = 3) |
False rejection rate (FRR) | <2% (security level = 3) |
Matching method | 1:N and 1:1 matching; |
Fingerprint template size | 448 bytes |
Security level setting | Level 1 to Level 5 adjustable, factory setting: Level 3 |
Processing speed | Fingerprint feature extraction time < 0.45 seconds; 1:N matching time (for 3,000 registered entries) < 1.5 seconds; |
Communication interface | UART, 3.3V-TTL level or USB communication; |
Serial communication parameters | Baud rate: 9600, 19,200, 38,400, 57,600, 115,200 (bps) Factory setting: 115,200 bps |
Operating voltage | Vin voltage: DC3.3V +/- 10% (can be customized for 5V power supply) |
Operating current | Less than 30mA, peak current less than 80mA (instantaneous current during fingerprint acquisition) |
Standby current | Less than 10uA; |
Operating environment | Operating temperature: -10~60 degrees Celsius; |
Relative humidity | 20%~80%. |
Fingerprint scanner module ID1019 is becoming the preferred technology among various smart devices due to its advantages of high precision, low power consumption, and easy integration. Whether it is smart locks or access control systems, it is providing a safer and more convenient user experience.
