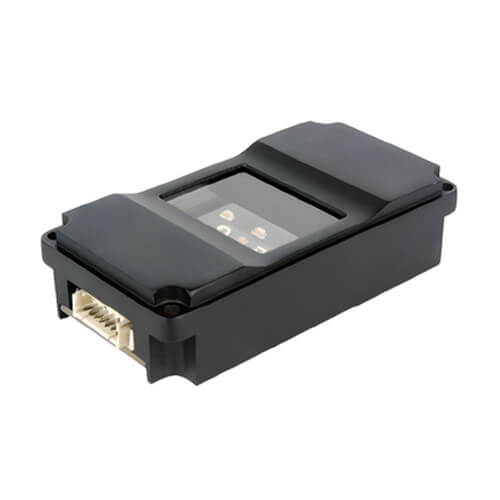

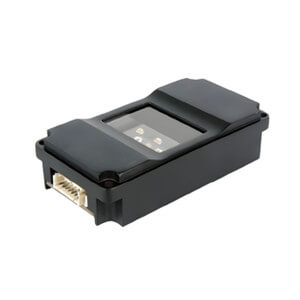

Securing your hardware systems requires uncompromising accuracy. The ID400 is an advanced, integrated FBI fingerprint scanner engineered to deliver reliable biometric authentication in a compact footprint. By combining state-of-the-art optical path technology with powerful image processing, this module ensures exceptional performance even in demanding environments.
Whether you are dealing with dry or wet fingers, the ID400 captures high-definition prints instantly. Its low power consumption and versatile compatibility make it the go-to choice for developers looking to integrate top-tier security into embedded systems.
Advanced Optical Sensor: Utilizes high-definition optical imaging to guarantee crystal-clear fingerprint capture, regardless of skin conditions (supports both wet and dry fingers).
Unmatched Accuracy: Built for high-security environments, it boasts a False Acceptance Rate (FAR) of <0.0001% and a False Rejection Rate (FRR) of <1%.
Lightning-Fast Matching: Authentication happens in the blink of an eye. Experience 1:1 comparison in under 0.1 seconds, and 1:N comparisons (up to 100 prints) in under 0.5 seconds.
Rugged Durability: Designed to survive harsh conditions. It features robust electrostatic discharge protection (±8KV contact, ±15KV air) and operates flawlessly across a wide temperature range.
Plug-and-Play Integration: Fully compatible with Windows and Android operating systems, ensuring a smooth development cycle for your engineering team.
| Sensor Type | Optical (Press Type) |
|---|---|
| Image Size & Resolution | 300 x 400 pixels | 508 dpi |
| Accuracy | FAR: < 0.0001% | FRR: < 1% |
| Comparison Time | < 0.1 sec (1:1) | < 0.5 sec (1:N, up to 100 pieces) |
| Interface & OS Support | USB 1.1/2.0 | Windows, Android |
| Power Consumption | Working Voltage: 3.3V | Working Current: 50mA |
| Electrostatic Protection | Contact Discharge: ±8KV | Air Discharge: ±15KV |
| Operating Environment | Temp: 0°C ~ 55°C | Humidity: < 90% RH (non-condensation) |
| Storage Environment | Temp: -40°C to 60°C | Humidity: 20% ~ 93% RH |

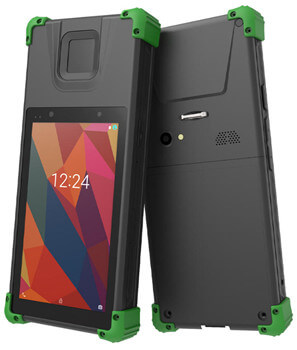

The ID400 module is designed for seamless integration into a wide variety of hardware terminals. It is widely deployed in:
Handheld POS devices and mobile payment terminals
Smart biometric door locks and access control systems
Time and attendance tracking hardware
Government and law enforcement identity verification tools

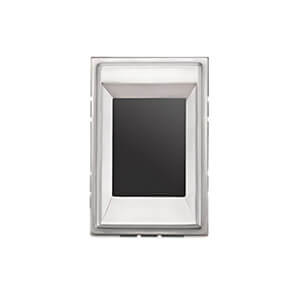

We understand that different projects require different compliance levels. While the ID400 provides a robust foundation, our broader product lineup includes solutions tailored to specific FBI Appendix F standards. If your project requires a FAP20 FBI-certified fingerprint scanner module, or you need the larger capture area of a FAP30 FBI-certified Scanner Sensor Module, our engineering team can provide the exact FBI-Certified Fingerprint Scanners to meet your technical blueprint.
Get full access to the ID400 SDK, technical documentation, and pricing details. Contact our biometric security experts today to request a sample for your development team.
Request a Quote & SDK
