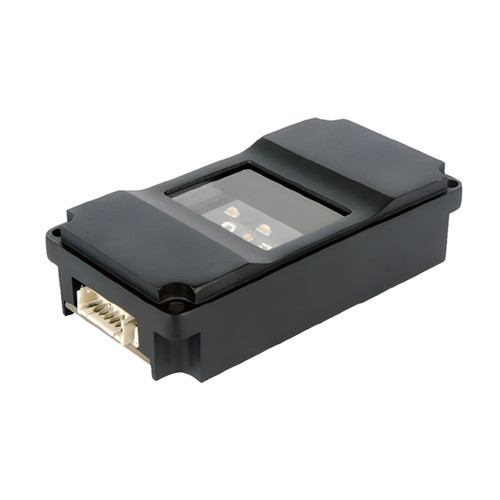

The FAP20 Fingerprint Scanner is a high-performance optical fingerprint module designed to meet the stringent requirements of FBI PIV, Mobile ID FAP 20, and international standards such as ISO19794-2, ISO19794-4, ANSI 378, and ANSI 381. Ideal for applications in banking, government, telecommunications, education, and healthcare, this scanner offers reliable and secure biometric identification solutions.
Key Features
High-Resolution Imaging: Captures clear fingerprint images at 500 DPI, ensuring accurate identification.
Rapid Fingerprint Capture: Offers fast scanning speeds with<0.1s recognition time for 1:1 and <0.5s for 1:N (100 pieces).
Exceptional Fingerprint Quality: Effectively captures dry, wet, rough, and damaged fingerprints, providing high-quality images for reliable matching.
Cross-Platform Compatibility: Supports both Windows and Android operating systems, making it versatile for various applications.
Comprehensive SDK Support: Comes with a complete SDK development kit, enabling quick integration and secondary development.
Specifications
| Sensor Type | Optical |
| Collection Method | Press Type |
| Image Size | 300×400 pixels |
| Image Resolution | 500 DPI |
| FAR | <0.0001% |
| FRR | <1% |
| Comparison Time | <0.1s (1:1), <0.5s (1:N, 100 pieces) |
| Communication Interface | USB 1.1/2.0; SPI |
| Operating Systems | Windows; Android |
| Working Voltage | 3.3V |
| Working Current | 50mA |
| Electrostatic Protection | Contact Discharge: ±8KV; Air Discharge: ±15KV |
| Operating Temperature | 0°C ~ 55°C |
| Storage Temperature | -40°C ~ 60°C |
| Working Humidity | <90% RH (non-condensing) |
| Storage Humidity | 20% ~ 93% RH |
Applications
The FAP20 Fingerprint Scanner is ideal for integration into various smart terminals, handheld POS machines, fingerprint locks, and other embedded devices. It is widely used in:
Financial Banking
Government Units
Telecommunications
Education
Medical Industries
Why Choose Our FAP20 Fingerprint Scanner?
Our FAP20 Fingerprint Scanner stands out for its high-resolution imaging, rapid fingerprint capture, exceptional fingerprint quality, cross-platform compatibility, and comprehensive SDK support. Whether you're developing a new application or enhancing an existing system, this scanner provides the reliability and performance you need. Contact us today to learn more about how our FAP20 Fingerprint Scanner can meet your biometric identification needs.
