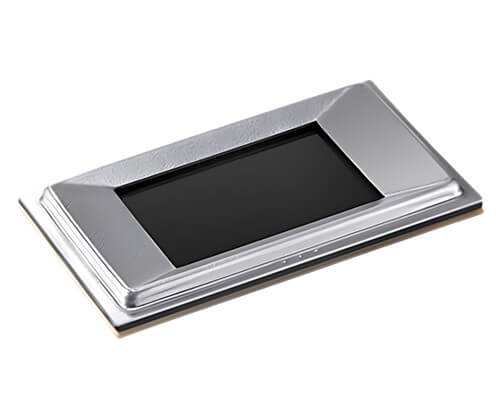

The ISO 19794-2 standard fingerprint scanner ID360 is a state-of-the-art large-area capacitive fingerprint module designed to meet international standards such as ISO and ANSI. This advanced scanner excels in accurately capturing and recognizing a wide range of fingerprints, including rough, dry, and damaged prints. It effectively rejects deceptive behaviors, such as fake fingers and molds, making it an ideal solution for secure identity authentication.
Complies with international standards such as ISO 19794 and ANSI
Capacitive fingerprint sensor, free from image distortion with clear image quality
Compatible with Windows, Android, and Linux operating systems
Provides comprehensive development materials for rapid secondary development
| Parameter | Specification |
|---|---|
| Sensor | Capacitive |
| Effective Image Size | 12.8 * 18 mm |
| Image Size | 256 * 360 pixels |
| Image Resolution | 508 dpi |
| FAR | ≤0.0001% |
| FFRR | ≤1% |
| Comparison Time | <0.1 second (1:1), <0.5 second (1:N, 100 pieces) |
| Communication Interface | USB |
| Supported Systems | Windows; Android; Linux; Embedded |
| Operating Voltage | 5 V |
| Operating Current | 50 mA |
| Electrostatic Protection | Contact discharge: ±8 KV; Air discharge: ±15 KV |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | <90% R.H (non-condensing) |
| Storage Humidity | 20 to 93% R.H |
The ISO 19794-2 standard fingerprint scanner ID360 can be seamlessly integrated into various intelligent terminals, handheld POS machines, fingerprint locks, and other embedded devices. Its versatility makes it suitable for industries requiring robust identity authentication and security control through fingerprint technology.
For more information on our range of FBI certified fingerprint scanners and FBI approved fingerprint scanners, please visit our dedicated pages.
