What Is an Optical Fingerprint Sensor Module and How Does It Work?

Fingerprint recognition has become a common way to verify identity in daily life. From unlocking doors to recording attendance, fingerprint systems are widely used because they are convenient and secure. Among the available technologies, the Optical Fingerprint Sensor Module remains one of the most reliable and widely adopted solutions.

What Is an Optical Fingerprint Sensor Module?

An Optical Fingerprint Sensor Module is a biometric device that captures a digital image of a fingerprint using light. It integrates three main components:

• An optical sensor for image capture

• A processor for image analysis

• A fingerprint algorithm for matching and verification

Unlike simple fingerprint readers, a module usually includes built‑in processing capability. It can complete enrollment, template generation, storage, and matching internally, making it easier to integrate into embedded systems.

For example, a typical Optical Fingerprint Sensor Module combines a high‑resolution optical sensor with a dedicated processor and algorithm engine, allowing fast recognition without requiring heavy computation from the host device.

How Does an Optical Fingerprint Sensor Work?

The working principle is straightforward and based on light reflection.

1. Image Capture

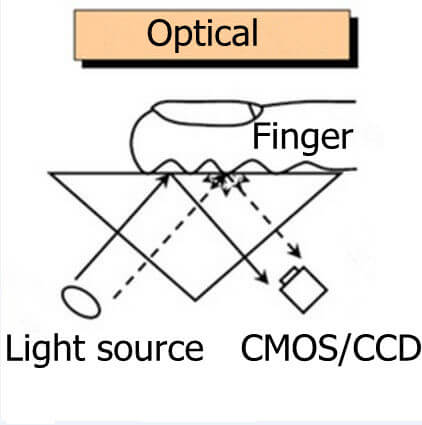

When a finger is placed on the sensing surface, light emitted inside the module reflects differently from the ridges and valleys of the fingerprint. The sensor captures this reflected light and converts it into a grayscale image.

2. Image Processing

The module enhances the captured image by adjusting contrast and removing noise. This step ensures that fingerprint details remain clear even if the finger is slightly dry or moist.

3. Feature Extraction

Instead of storing the full image, the system extracts unique points called minutiae (such as ridge endings and bifurcations). These points are converted into a mathematical template.

4. Matching

During verification, the new fingerprint template is compared with stored templates. The comparison can be:

• 1:1 matching – verifying a claimed identity

• 1:N matching – searching within a database

If the similarity score exceeds a predefined threshold, the identity is confirmed.

Why Optical Technology Is Still Widely Used

Although several fingerprint technologies exist, optical sensors remain popular for practical reasons:

• Stable imaging performance

• Good adaptability to different finger conditions

• Cost-effective for commercial systems

• Suitable for industrial environments

Modern modules typically offer 500 dpi resolution, which provides clear image detail for accurate recognition.

Where Are Optical Fingerprint Modules Used?

Because they are compact and self-contained, optical modules are easy to integrate into many devices:

• Access control terminals

• Smart door locks

• Time attendance systems

• Safes and secure cabinets

• Identity verification terminals

In embedded applications, modules with UART or USB interfaces simplify hardware integration and reduce development time.

Optical vs Other Fingerprint Technologies

Compared with capacitive or ultrasonic sensors, optical modules rely on light-based imaging. They are often preferred in access control and industrial devices where durability and consistent imaging matter more than ultra-thin form factors.

Each technology has its advantages, but optical modules remain a balanced choice for performance, stability, and integration simplicity.

Final Thoughts

An Optical Fingerprint Sensor Module works by capturing a fingerprint image through light reflection, extracting unique features, and comparing them with stored templates. With built-in processing and algorithm support, modern modules provide fast and accurate biometric authentication for a wide range of applications.

Understanding how the technology works helps system designers choose the right solution for secure and reliable identity verification.
