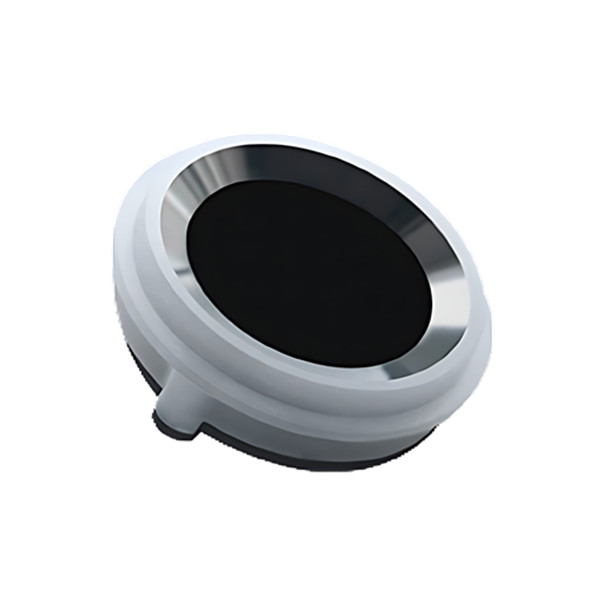

Arduino Fingerprint Reader

Sensor: Capacitive   Capacity :200ID   Interface :Uart

Arduino fingerprint reader ID1016R is a capacitive fingerprint module independently designed and developed by IDWorld. Using capacitive sensors and high-performance processors, it has the characteristics of high compatibility, fast acquisition speed, strong anti-counterfeiting ability, simple use and low power consumption. The product adopts Uart communication, split design, compact and lightweight, and can be widely used in various desktop and portable devices.


Main board and sensor integrated, small size, low power consumption, high reliability;

High performance Cortex-M4F core processor with fast computing speed

IDFinger fingerprint algorithm, fast comparison speed, high accuracy;

Support Windows, Android, Linux and other embedded operating systems;

Complete development kit is provided for secondary development and integration.


Product model: ID1016R

Sensor Type: Capacitive

Effective acquisition window: 8mm×8mm

Image size: 160 × 160pixel

Image Resolution: 508dpi

Fingerprint registration capacity: 200

False Recognition Rate (FAR): <0.001% (Security Level is 3)

Authenticity rejection rate (FRR): <2% (SecurityLevel is 3)

Alignment method: 1:N and 1:1 alignment

Fingerprint template size: 1008 bytes Byte

Security level setting: Level1 to Level5 can be set, factory setting value: Level3

Processing speed: 1:N comparison time (200 full registrations) <0.6 seconds

Communication interface: UART, 3.3V-TTL level

Baud rate: The baud rate is 9600--115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current: less than 40mA

Working environment: Working temperature: -10℃-60℃ Relative humidity: 20%–80%

Operating System: Windows, Android


ID1016R is widely used in fingerprint locks, fingerprint safes, fingerprint access control and fingerprint attendance, etc.


Arduino fingerprint reader

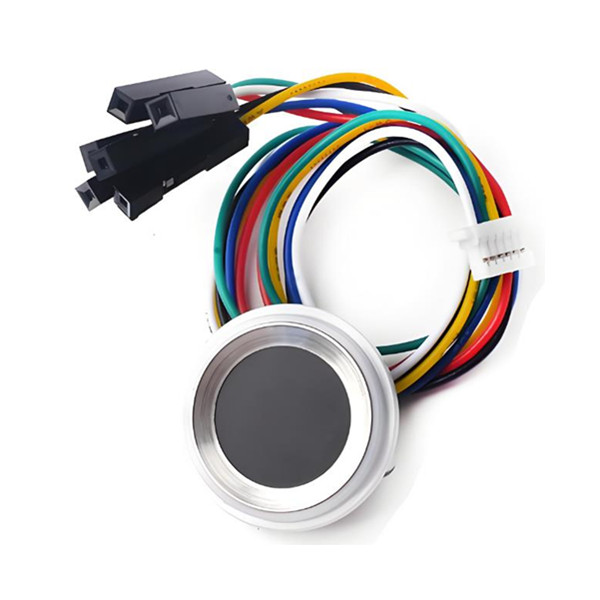

Packing list

1.25mm-7PIN cable

Arduino fingerprint reader
