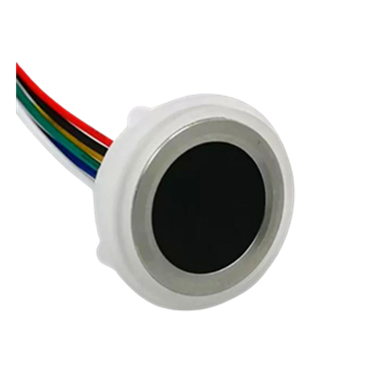

The fingerprint module IDWD1016R is a cost-effective semiconductor fingerprint recognition module and designed by Beijing ID World Technology Development Co., Ltd. This module has simple structure and powerful functions. With the host computer, it can complete fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (including 1:1 and 1:N), fingerprint deletion and other functions. The module uses a semiconductor fingerprint sensor, with clear fingerprint images and strong adaptability to various types of fingers. It runs the IDFinger high-performance fingerprint core algorithm, which is widely praised in the industry, and adopts high-speed CPU. It has the characteristics of high anti-counterfeiting performance, fast collection speed, strong adaptability, and simple development. The IDWD1016R communication protocol is simple and reliable. The standard UART protocol can be used to connect different upper-level devices. You can embed the fingerprint module into your intelligent products with simple peripheral circuits, so that your products have strong fingerprint recognition capabilities.
technical parameter:
project description
Model: IDWD1016
CPU: ID809/811
Fingerprint sensor: dpi: 508 pixels: 160*160
Fingerprint capacity: 80/200/500
FAR:<0.001% (Security Level is 3)
FRR:<2% (Security Level is 3)
Comparison method: 1:N and 1:1 comparison
Fingerprint template size: 1008 Byte
Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3
Processing speed: fingerprint feature extraction time<1 second 1: N comparison time (when 200 full registrations) <0.8 second
Communication interface: UART, 3.3V-TTL level
Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps
Working voltage: Win voltage: DC3.3V±10%
Working current:<40mA
Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%zhi
IDWD1016 is widely used in: fingerprint locks, fingerprint safes, fingerprint padlocks, fingerprint access control, time attendance, fingerprint U disks and other industries that require fingerprint authentication.
