| Quantity: | |
|---|---|
The fingerprint scanner for door access ID1028 is a capacitive fingerprint development module with high speed, fast recognition and high stability. It is an intelligent integrated module with high performance Cortex-M4 core, high security IDFingerV6.0 fingerprint algorithm, semiconductor fingerprint sensor, fingerprint entry, image processing, template generation, template storage, fingerprint matching and search. It is easy to use and does not require knowledge of fingerprint technology, the internal structure of the module and its operations, but only simple instructions. It provides standard secondary development of fingerprint components for research units, fingerprint product manufacturers and application integrators for fast and easy integration.
Product type: ID1028
CPU: ID808
Fingerprint capacity: 500/1700/3000
Sensor type: capacitive
Effective capture window: 10.4*14.4mm
Image size: 208*288pixel
Image resolution: 508dpi
Processing speed: 1:N matching time (500 pcs) Less than 0.6 sec
Matching method: 1:N and 1:1 matching
False Acceptance Rate (FAR): Less than 0.001 % (Security Level 3)
Rejection rate (FRR): Less than 2% (Security Level 3)
Communication interface: UART, 3.3V-TTL level
Baud rate: Baud rate 9600 - 115200 (bps) Factory setting: 115200 bps
Template size: Less than 448 bytes
Operating system: Windows/Android
Operating voltage: 3.3V
Operating current: Less than 40mA
Operating temperature: -20 °C ~ 55 °C
Operating humidity: 20% - 90% R.H
The fingerprint scanner for door access ID1028 is widely used in the development of fingerprint locks, fingerprint safes, fingerprint access control, fingerprint time and attendance and other scenarios.
1.25mm-7PIN cable

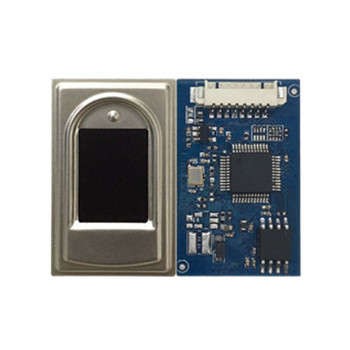

Fingerprint scanner for door access
The fingerprint scanner for door access ID1028 is a capacitive fingerprint development module with high speed, fast recognition and high stability. It is an intelligent integrated module with high performance Cortex-M4 core, high security IDFingerV6.0 fingerprint algorithm, semiconductor fingerprint sensor, fingerprint entry, image processing, template generation, template storage, fingerprint matching and search. It is easy to use and does not require knowledge of fingerprint technology, the internal structure of the module and its operations, but only simple instructions. It provides standard secondary development of fingerprint components for research units, fingerprint product manufacturers and application integrators for fast and easy integration.
Product type: ID1028
CPU: ID808
Fingerprint capacity: 500/1700/3000
Sensor type: capacitive
Effective capture window: 10.4*14.4mm
Image size: 208*288pixel
Image resolution: 508dpi
Processing speed: 1:N matching time (500 pcs) Less than 0.6 sec
Matching method: 1:N and 1:1 matching
False Acceptance Rate (FAR): Less than 0.001 % (Security Level 3)
Rejection rate (FRR): Less than 2% (Security Level 3)
Communication interface: UART, 3.3V-TTL level
Baud rate: Baud rate 9600 - 115200 (bps) Factory setting: 115200 bps
Template size: Less than 448 bytes
Operating system: Windows/Android
Operating voltage: 3.3V
Operating current: Less than 40mA
Operating temperature: -20 °C ~ 55 °C
Operating humidity: 20% - 90% R.H
The fingerprint scanner for door access ID1028 is widely used in the development of fingerprint locks, fingerprint safes, fingerprint access control, fingerprint time and attendance and other scenarios.
1.25mm-7PIN cable
Fingerprint scanner for door access
