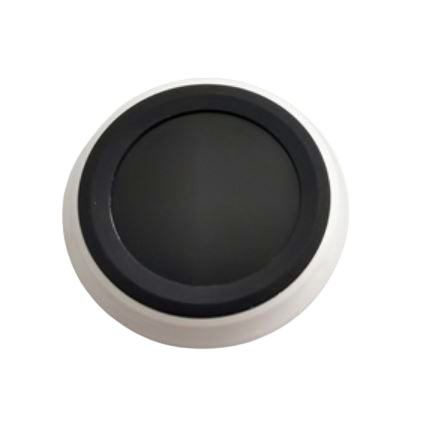

windows hello Fingerprint Reader is a fingerprint recognition module developed by IDWorld that supports windows hello. It has the advantages of high pixel of fingerprint image and good effect of dry, wet and rough fingerprint. Running IDFinger fingerprint recognition algorithm, fast recognition speed, high recognition accuracy, can efficiently collect and identify dry, wet, broken skin, dirty fingers and other fingers. Support self-learning, support 360-degree fingerprint rotation collection, gently press your finger to obtain a clear fingerprint image.
Capacitive fingerprint sensor, clear imaging
The identification speed is fast and accurate, and supports rotating fingerprint
Dry/wet/rough fingers had better imaging quality
Applicable to a wide range of people
Model | ID1056 |
Sensor | capacitive 508dpi pixel:192*56 |
Capacity | 20pieces |
FAR | < 0.001% (Level is 3) |
FRR | < 2% (Level is 3) |
Template size | 20K |
Security Level Settings | Level 1 --Level 5, factory value :Level 3 |
Comparison time | 1:N Comparison time < 0.5 second |
Communication | UART,3.3V-TTL level |
Baud rate | Factory setting: 115200bps |
Operating voltage | Win Voltage: DC3.3V±10% |
Operating current | < 40mA |
Working environment | Temperature: -10℃ -60 ℃ Humidity: 20%-80% |
The Windows Hello Fingerprint Reader app is used for fingerprint verification during startup and shutdown of Windows-based computers.
