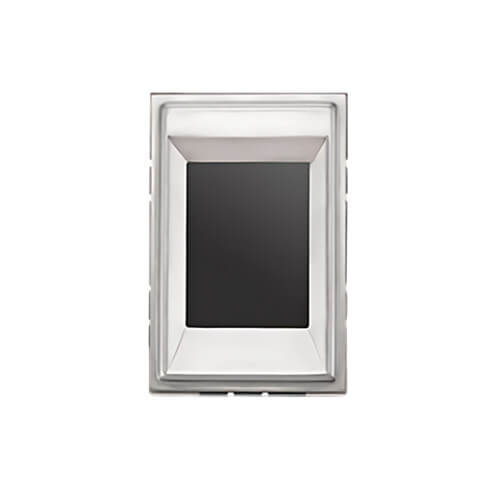

fap30 Fingerprint Scanner

Availability:
Quantity:

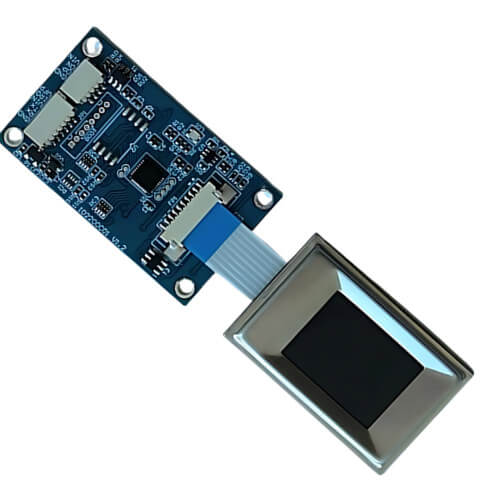

The FAP30 Fingerprint Scanner uses a semiconductor capacitive sensor and uses advanced capacitive fingerprint acquisition technology for precision, reliability and durability. A number of environmental and electrical tests are carried out at the same time, which can be used in a variety of application scenarios. The acquisition board uses the USB2.0 Type C standard interface and can be used as a USB device for communication.

Product characteristics

Effective pixel: 400*500

Grayscale value level: 256

Resolution: 508DPI

Special coating: Scratch-resistant, good for wet fingers

ESD standard: contact ±8KV, air ±15KV

Interface type: SPI+ parallel interface

Specification parameter

Sensor type: Capacitive

Image size: 400*500pixel

Image resolution: 508dpi

Recognition rate (FAR) : <0.001%

Rejection rate (FRR) : <1%

Comparison time: <0.1 SEC (1:1), <0.5 SEC (1:N,100 pieces)

Communication interface: USB; SPI

Support system: Windows; Android

Operating voltage: 3.3-5V

Working current: 55mA

Electrostatic protection: contact discharge: ± 8KV Air discharge: ± 15KV

Operating temperature: 0°C ~ 55°C

Storage temperature: -40°C to 60°C

Working humidity: < 90%R.H (non-condensation)

Storage humidity: 20 ~ 93% R.H

FAP30 Fingerprint Scanner

FAP30 Application scenarios of Fingerprint Scanner

Access control field: mainly used in home, office, warehouse and other fingerprint access control and other indoor applications;

Attendance field: in fingerprint attendance, fingerprint office and other similar programs;

Financial field: bank fingerprint password savings, fingerprint password login, fingerprint password operation authority, ATM automatic teller machine identification;

Internet field: computer and network security, member account and management, Internet shopping payment means and other identity authentication occasions;

Security field: identification, fingerprint collection and other indoor applications;
