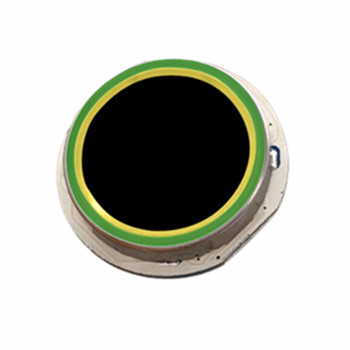

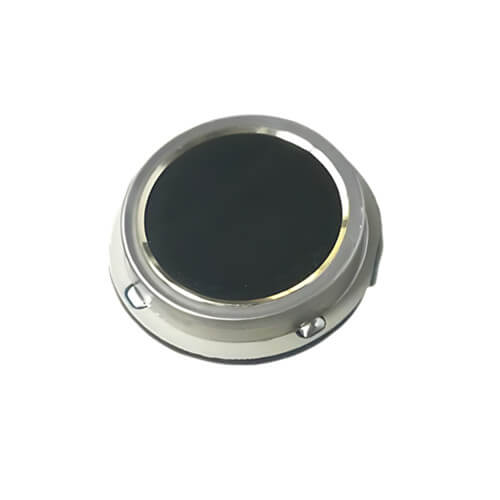

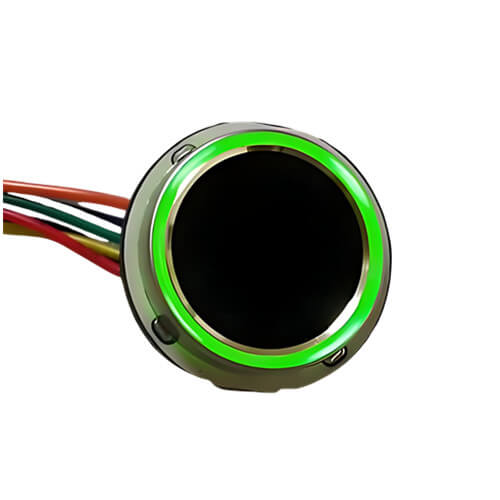

Biometric Fingerprint Reader

Sensor: Capacitive   Capacity :500ID   Interface :Uart

Biometric fingerprint reader ID1019R mainboard and sensor are integrated, small size, low power consumption, high reliability, support Windows, Android, and other embedded platforms. The built-in IDFinger intelligent learning fingerprint algorithm has the characteristics of small size, low power consumption, fast acquisition, strong adaptability to dry and wet fingers, and high anti-counterfeiting, and can be flexibly embedded in various terminal devices. The product adopts standard UART communication and cooperates with development materials to meet customer fingerprint identification requirements such as fingerprint entry, image processing, template generation, and fingerprint comparison.


Fingerprint imaging is clear and the image quality is excellent

Capacitive fingerprint recognition, sensitive sensing, finger just gently touch the collection window can be quickly identified

Built-in IDFinger fingerprint algorithm, support fingerprint input, fingerprint comparison, fingerprint image extraction and fingerprint feature value upload and other functions, stable performance, fast identification

Dry, wet and rough fingers all have better imaging quality and are widely used by the population

Small size, easy to embed in all kinds of terminal equipment

Supports the development of Windows, Android and other operating systems


Sensor Type - Semiconductor Capacitive

Effective image size-9.6*9.6mm

Image size-192*192pixel

Image Resolution - 508dpi

Fingerprint Algorithm False Recognition Rate (FAR)-<0.001%

Fingerprint Algorithm Rejection Rate (FRR)-<2%

Fingerprint registration time-<3s

Fingerprint comparison time - <0.1 seconds (1:1), <0.5 seconds (1:N, 100 pieces)

Fingerprint matching method - 1:1, 1:N

Fingerprint feature value size - 448 bytes

Storage capacity - 170 pieces

Communication interface-UART

Support System - Windows/Android/Embedded System

Working voltage - DC 3.3V

Working temperature--10°C~55°C

Storage temperature--40°C~60°C

Working humidity-<90%R.H (non-condensing)

Storage humidity -20~93% R.H


ID1019R is widely used in smart terminals, self-service equipment and other hardware terminals that require fingerprint authentication.


Biometric Fingerprint Reader

Packing list

1.25mm-7PIN cable

Biometric fingerprint reader
