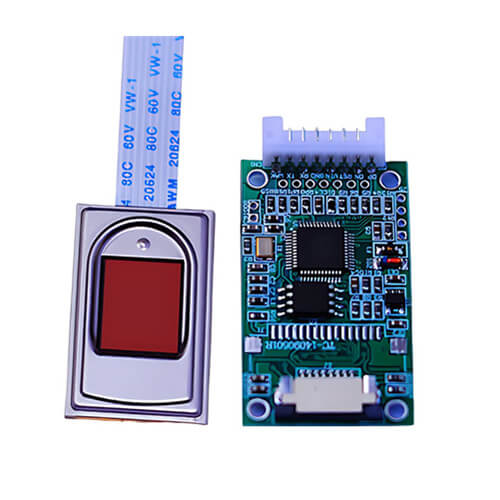

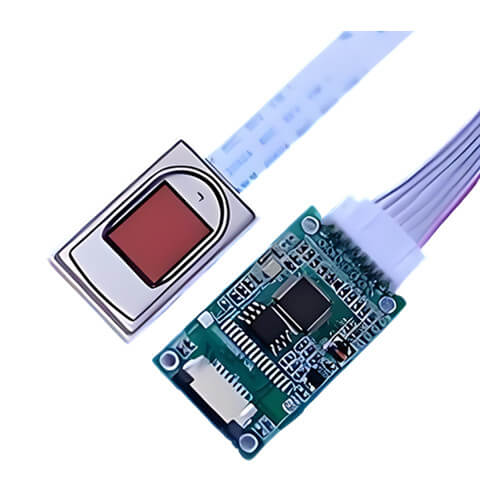

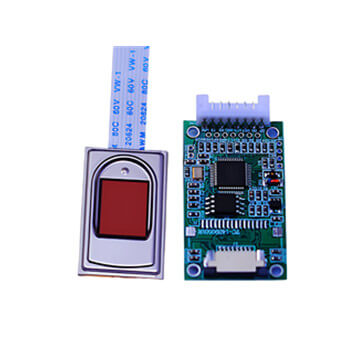

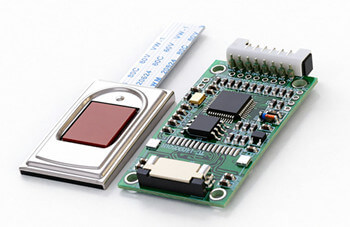

Capacitive fingerprint sensor

Name: Capacitive fingerprint sensor  Model number: ID1011  Storage capacity: 3000
Availability:
Quantity:

The Capacitive fingerprint sensor adopts a capacitive sensor and a high-performance processor, which is characterized by compact size, easy to develop, easy to use and fast collection.

Overview:

Capacitive fingerprint sensor ID1028 consists of high-performance processor, capacitive fingerprint sensor and IDFinger fingerprint algorithm. It can provide customers with efficient and flexible secondary development support to fully meet customer needs. The product has a simple structure and modular design, which has the advantages of wear resistance, corrosion resistance and static resistance, which improves the stability and consistency of the product. ID1028 semiconductor fingerprint module provides a general serial port that can be used for external control (host computer). According to the communication protocol designed by the integrated program, the development interface is simple, which is convenient for the secondary development of industry users, reduces the difficulty of product development, and shortens the product development cycle. .

Specifications

parameter

project description

Model: ID1028

CPU: ID809/808

Sensor Type: Capacitive

Image size: 200*152pixel

Image Resolution: 363dpi

Fingerprint registration capacity: 170/500/1000 pieces,

False Recognition Rate (FAR): < 0.001 % (Security Level is 3)

Authenticity rejection rate (FRR): < 2% (Security Level is 3)

Fingerprint template size: 498 bytes Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Fingerprint registration time: < 3 seconds

Fingerprint comparison method: 1:1 / 1:N

Comparison time: <0.2 seconds (1:1), <0.5 seconds (1:170)

Communication interface: UART, 3.3V-TTL level

Baud rate: 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: DC3.3V±10%

Working current: <40mA

Working environment: Working temperature: -10℃ - 60℃ Relative humidity: 20% – 80%

Working humidity: <90%R.H (non-condensing)

Storage humidity: 20~93% R.H

Support system: Windows; Android; Embedded

Capacitive fingerprint sensor is applied to the development of fingerprint lock, fingerprint safe, fingerprint access control, fingerprint attendance and other scenes.
