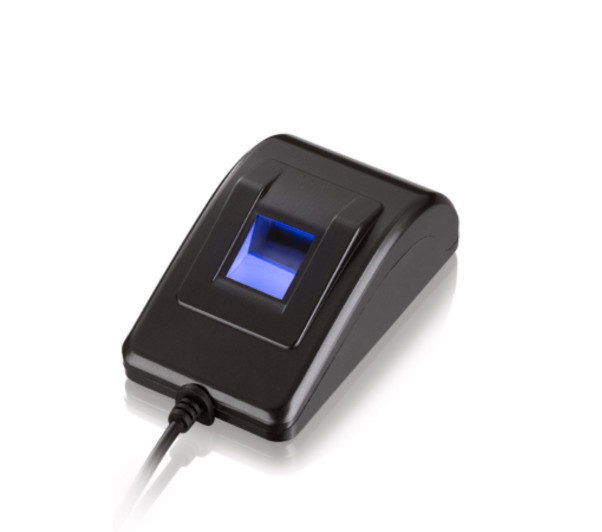

Fingerprint acquisition instrument

Fingerprint image pixel high, dry, wet, rough fingerprint effect is good

Fingerprint acquisition instrument IDWD2200 is a professional fingerprint collection and authentication device product, specifically designed for the secondary development of identity authentication projects. IDWD2200 fingerprint scanner is small in size, low in cost, and has excellent performance. The inherent security password allows you to have it at your fingertips. It has multiple functions such as fingerprint entry, image processing, fingerprint comparison and template storage, and it has fast image acquisition speed, high image quality, good stability, and strong expansion capability (can be expanded to more than 100,000 fingerprints, depending on the hardware equipment conditions) . Through the fingerprint identification software development kit (SDK) provided by the company, secondary developers or system integrators can easily implement fingerprint identification security authentication functions.


Model: IDWD2200

CPU: ID809/808

Fingerprint sensor: optical sensor

Fingerprint registration capacity: 3000/10000/50000/100000

FAR:Less than0.001% (Security Level is 3)

FRR:Less than0.1% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size: 498 bytes

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction timeLess than1 second 1: N comparison time (when 200 full registrations) Less than0.8 second

Communication interface: USB

Working voltage: Win voltage: DC5V±10%

Working current: less than 40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%


IDWD2200 is widely used in industries that require identity authentication such as banking and insurance.


Fingerprint acquisition instrument

Packing list

USB cable

Fingerprint acquisition instrument
