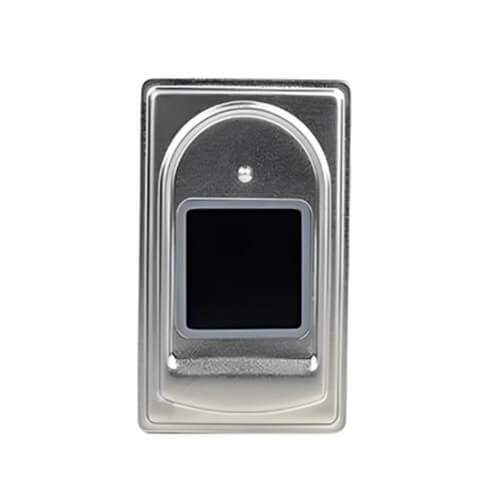

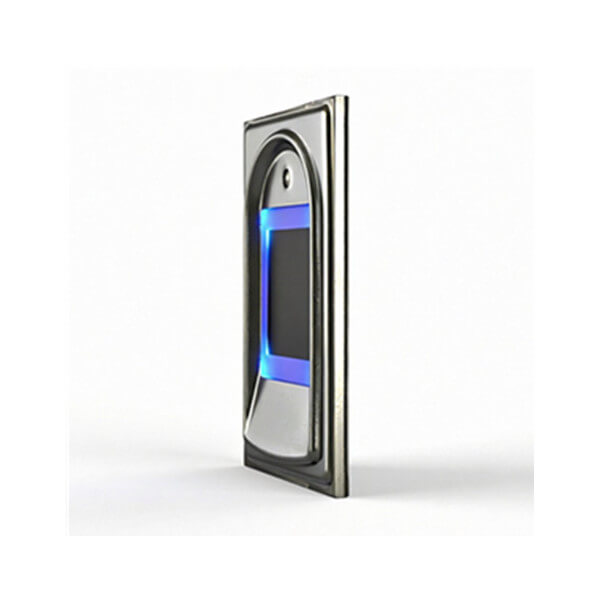

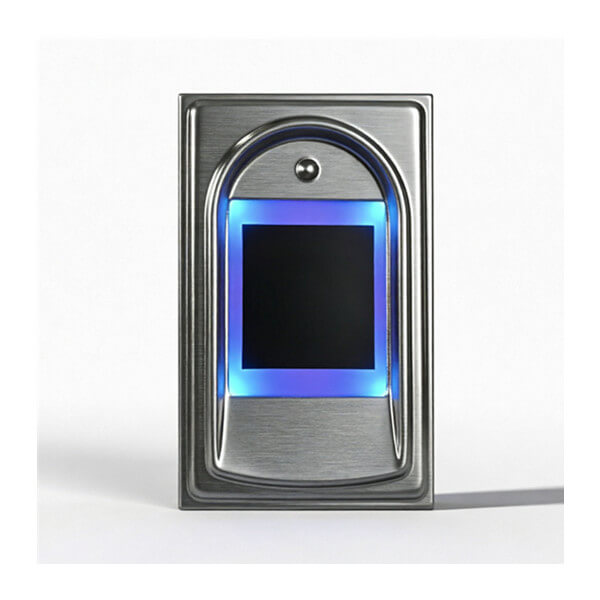

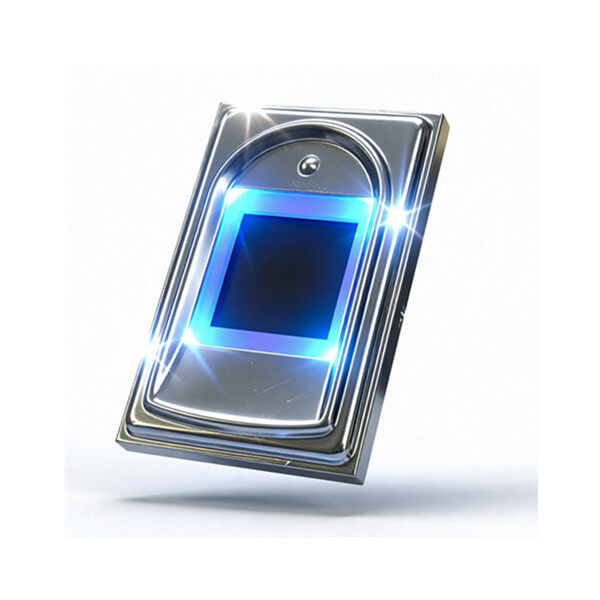

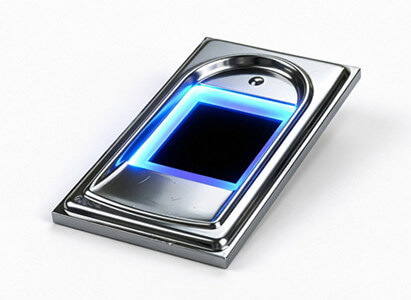

fingerprint scanner sensor offers high speed, fast recognition and high stability. Based on ID821 high-speed processor as the core, combined with the new IDFinger high-security fingerprint algorithm, capacitive fingerprint sensor, fingerprint input, image processing, feature value extraction, template generation, template storage, fingerprint comparison and other functions. It provides UART interface and communication protocol, and is a capacitive fingerprint module dedicated to secondary development integrated applications.
Specification
Model :ID1019
CPU:ID821
Sensor type: Capacitive
Effective acquisition window :9.6*9.6mm
Image size :192*192pixel
Image resolution :508dpi
Fingerprint registration capacity :170/500/1000,
Recognition rate (FAR) :< 0.001% (Security Level is 3)
Rejection rate (FRR) :< 2% (Security Level is 3)
Fingerprint template size :448 bytes Byte
Security Level Settings :Level 1 to Level 5 Configurable, factory setting :Level 3
Fingerprint registration time :< 3 seconds
Fingerprint comparison mode: 1:1:1 :N
Comparison time :<0.2 SEC (1:1), <0.5 SEC (1:170)
Communication interface :UART,3.3V-TTL level
Baud rate :9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps
Operating voltage :DC3.3V±10%
Working current: < 40mA
Electrostatic protection: contact discharge ± 8KV; Air discharge ±15KV
Operating temperature :-10℃ -60 ℃
Working humidity :20 ~ 93% R.H
Support system :Windows; Android; Linux; embedded
Application
fingerprint scanner sensor can be integrated into all kinds of intelligent terminals, access control and attendance machines, handheld POS machines, fingerprint locks, fingerprint safes and other embedded devices.
