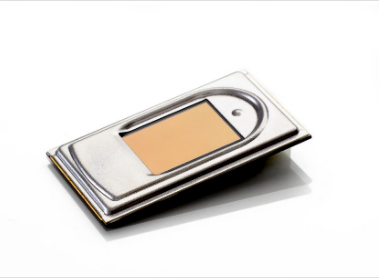

FPC1011F3 is a new compact CMOS fingerprint sensor with several significant advantages. FPC1011F3 delivers superior image quality, with 256 gray scale values in every single pixel. The reflective measurement method sends an electrical signal via the frame directly into the finger. This technique enables the use of an unbeatably hard and thick protective sensor surface coating. The sensor with its 3D pixel sensing technology can read virtually any finger; dry or wet.Thanks to the hard and durable surface coating, FPC1011F3 is protected against ESD above 30 kV, as well as scratches, impact and everyday wear-and-tear. The FPC1011F3 includes a designed micro-ergonomic guidance frame, supporting easy integration, simplifying proper fingerprint guidance and hence improving algorithm performance. The FPC1011F3 sensor also includes an ultra-thin flex film connector, supporting a high speed 4 pin serial SPI interface.
Hard and scratch resistant protective surface coating
Superior image quality
3D image with 256 true gray scale values
Ergonomic frame for optimized finger guidance
High speed SPI interface
New ultra-thin flex film connector
2.5 to 3.3 volt operation
Extended ESD range 30kV
>10 million finger placements
Computer peripheral
Physical access control
Time and attendance
Wireless devices
Medical equipment & storage
PARAMETER | DESCRIPTION | VALUE | UNIT |
Sensor dimension | Sensor body (W x L x T), nominal | 20.4 x 33.4 x 2.3 | mm |
Interface | Flex connector, 4 pin SPI | 8 | pin |
Supply voltage | DC voltage, typical | 2.5-3.3 | V |
Supply current | Typical at 3.3V, 4MHz and RT (room temp) | 7 | mA |
Supply current sleep mode | Power down, typical | 10 | uA |
Clock frequency | Serial SPI | 32 | MHz |
Read out speed | Serial SPI | 4 | Mpixel/s |
Active sensing area | Pixel matrix | 10.64 x 14.00 | mm |
Size sensing array | Pixel matrix (363 dpi) | 152 x 200 | Pixel |
Pixel resolution | 256 gray scale values | 8 | Bit |
ESD protection | IEC61000-4-2, level X, air discharge | ± 30 | Kv |
Wear-and-tear | Finger placements | > 10 million | times |

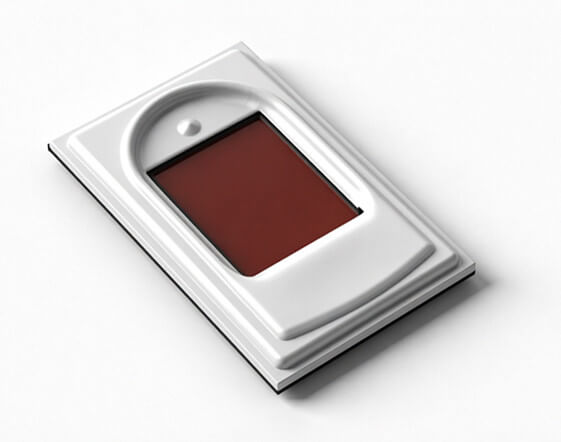

FPC1011F3
