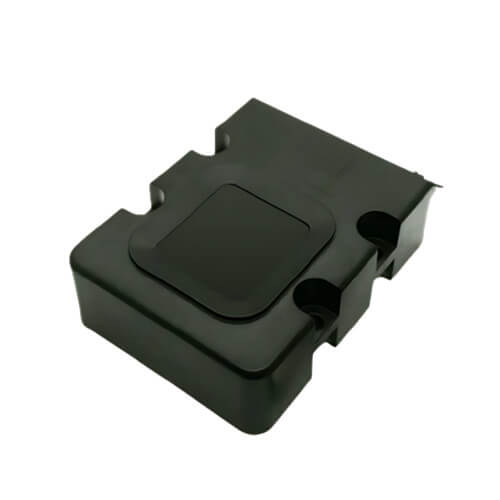

ISO fingerprint reader IDWD360 is a cost-effective semiconductor fingerprint identification module developed by IDWorld that supports international standards. The module is based on a dedicated 32-bit high-speed DSP processor, combined with IDFinger fingerprint recognition algorithm and semiconductor fingerprint sensor, the fingerprint image has a large effective area, strong environmental adaptability, durable, and supports ISO, STQC and other standards. IDWD360 cooperates with the SDK development kit Complete fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (including 1:1 and 1:N), template deletion and other functions. The fingerprint recognition module contains two interfaces, USB and SPI, which are used to connect different upper-level devices, so that the fingerprint module can be embedded in your smart product, and your product has a strong fingerprint recognition capability.
Sensor size: 35*23*3.5mm.
Fingerprint sensor type: semiconductor capacitor.
Collection window size: 14.25 to 19.3 mm.
Effective image size: 12.8 to 18 mm.
Picture size: 256*360 pixels.
Image resolution: 508dpi.
Accepted leave rate is less than 0.0001% ((FAR):).
The rejection rate ((FRR):) is less than 1%.
Comparison time: Less than0.1s (1:1), Less than0.5s (1purn, 100pieces).
Communication interface: UART (default TTL 115200bps); USB; SPI.
Support system: Windows; Android.
Working voltage: 3.3V.
Working current: 50mA.
Electrostatic protection: contact discharge: ±8KV air discharge: ±15KV.
Working temperature: 0℃～55℃.
Storage temperature: -40°C ~ 60°C.
Working humidity: Less than90%R.H (non-condensing).
Storage humidity: 20: 93% R.H
IDWD360 is used in education, medical care, finance, social insurance and other industries that require fingerprint certification and security control.
USB cable
ISO fingerprint reader
