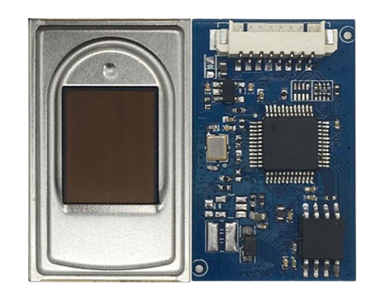

OEM Fingerprint Module

Sensor type: capacitive   Fingerprint capacity: 3000   Interface: UART/USB

OEM fingerprint module ID1011 is composed of ID811 fingerprint recognition algorithm board and capacitive fingerprint sensor, which has the advantages of good experience, wear resistance, corrosion resistance, anti-static and so on. ID1011 runs the IDFinger fingerprint recognition algorithm independently developed by IDWorld, which is widely praised in the industry, and its performance indicators are in the forefront of similar products in the market.


Model: IDWD1011

CPU: ID811

Fingerprint Collector: Capacitive Fingerprint Sensor

Fingerprint registration capacity: The default is 500 pieces, and it can be expanded to 3000 pieces

False Recognition Rate (FAR): Less than 0.001 % (Security Level is 3)

Authenticity rejection rate (FRR): Less than 2% (Security Level is 3)

Alignment method: 1:N and 1:1 alignment

Fingerprint template size: 498 bytes Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction time Less than 0.45 seconds, 1:N comparison time Less than 0.8 seconds

Communication interface: UART, 3.3V-TTL level

Baud rate: 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current: less than 40mA

Working environment: Working temperature: -10℃ - 60℃ Relative humidity: 20% – 80%


ID1011 is widely used in: smart door locks, safes, luggage locks, padlocks, fingerprint U disk/key, access control attendance and other industries.

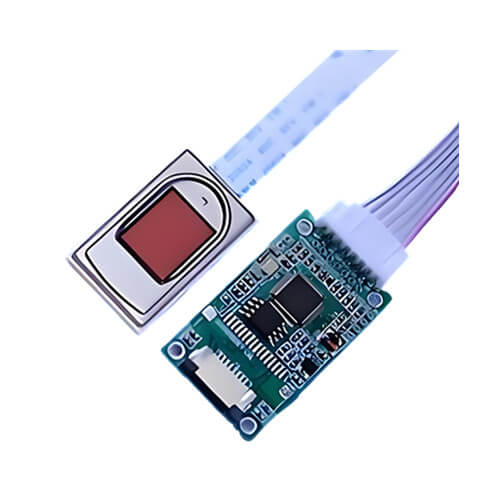

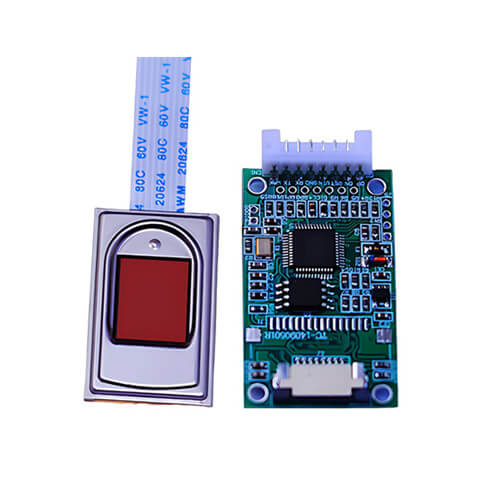

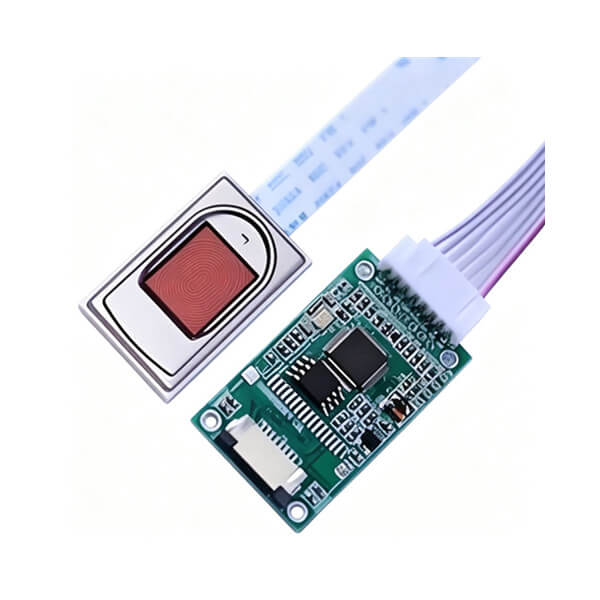

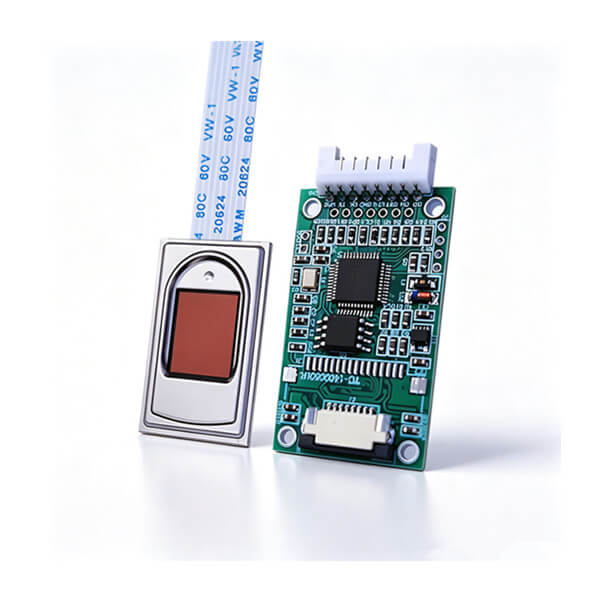

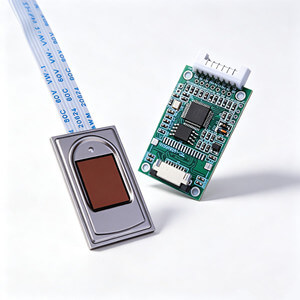

OEM fingerprint module

Packing list

1.25mm-7PIN cable

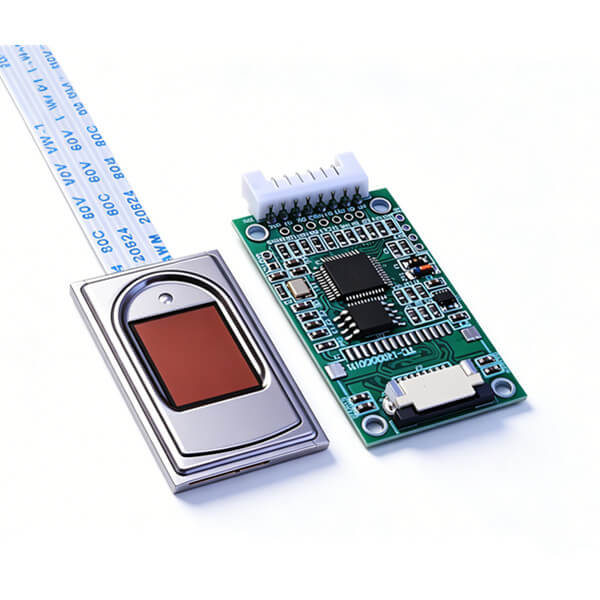

OEM fingerprint module
