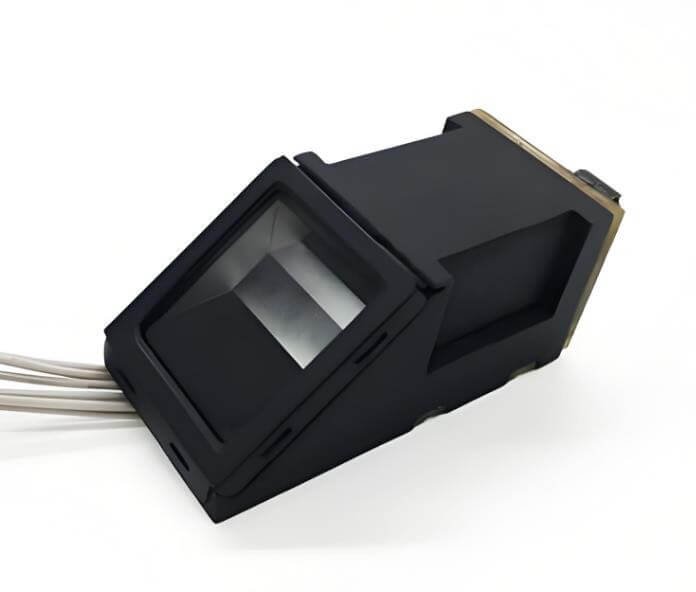

Optical Fingerprint Reader

SKU: 1016C
Product Name: Optical Fingerprint Reader
Capacity: 500/1700/3000

Availability:
Quantity:

Optical Fingerprint Reader adopts optical fingerprint imaging technology, which has good fingerprint imaging effect, fast acquisition speed and strong adaptability to wet and dry fingers.

Overview

Optical Fingerprint Reader ID1042 has sensitive fingerprint sensing and fast recognition speed. When using it, you only need a touch of your finger to quickly recognize it. Based on IDWorld fingerprint comparison algorithm IDFingerV6.0, it supports 500-3000 fingerprint template storage, and has functions such as fingerprint entry, image processing, feature value extraction, template generation, template storage, fingerprint comparison and search.

Features

Optical imaging technology, fingerprint image pixel high

Large acquisition area and clear imaging

Identification speed is fast and supports rotation fingerprint

Dry/wet/rough fingers had better imaging quality

Applicable to a wide range of people

Supports the development and use of Windows, Android and other systems

Specifications

item-parameter

Model - ID1042

CPU-ID808+

Sensor - Optical Fingerprint Sensor

Fingerprint Image - 242×266 pixels/500DPI

Fingerprint Template - 496bytes

Fingerprint capacity - 500 pieces

Collection area-18x22mm

Comparison method - 1:1 and 1:N comparison

Error rate - FAR 0.001% / FRR 2.0%

Communication method - UART

Security level setting -1~5, factory default level 3

Processing speed-fingerprint feature extraction time-<0.45s 1:N comparison time<0.8s

Current voltage - working voltage DC3.3V

Working current - <40mA

Working environment--25°C~~60°C

Downloads

Development data: data sheet, communication instruction set, Demo program, source code, etc.

http://www.idwdfp.com/download.html

Applications

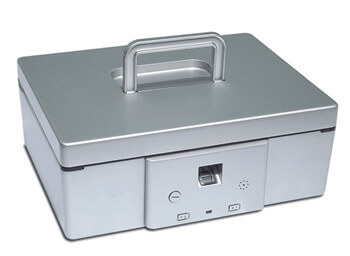

Optical Fingerprint Reader ID1042 module application case: fingerprint integration applications such as fingerprint locks, fingerprint safes, fingerprint access control, fingerprint attendance, etc.
