Touch Fingerprint Sensor

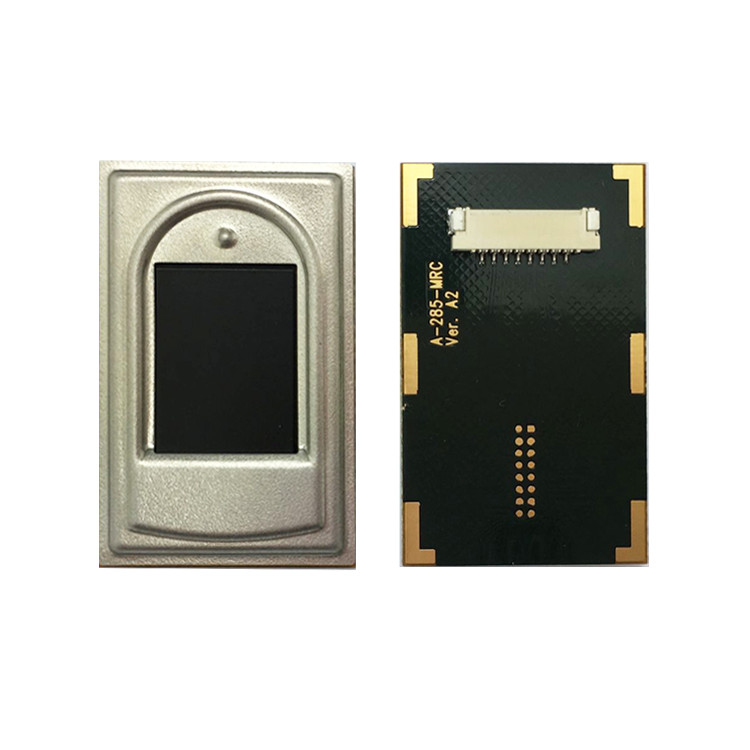

The touch fingerprint sensor is an ultra-thin CMOS fingerprint sensor that can be used in a wide range of applications such as computer peripherals, access control, time and attendance, and security applications. The diamond coating on the surface provides up to 6H hardness and protects the sensor against scratches, impacts and daily wear and tear. Equipped with an ergonomic guide frame, the touch fingerprint sensor guides the user to place their finger on the sensor, resulting in higher recognition performance. The metal frame can effectively improve ESD protection up to 15kV. An 8-pin flex connector on the back side supports a 4-pin SPI interface.

Features

Capacitive fingerprint sensor

508 DPI resolution for sharper images

Large collection area and high recognition rate

High surface hardness, scratch resistance

High speed SPI interface, easy to develop

64-bit secure encryption, more secure

In line with CE, RoHS international standards

Applications

Smart lock

Access control system

Drawer lock

Attendance machine

Specifications

Model: A285

Sensor type: Capacitive

Resolution: 508 DPI

Sensing area: 208 x 288 pixels

Image capture speed: 20 fps

Security key: 64-bit encryption

Hardness: 6H

Surface: Diamond-like coating

Power input: 1.8-3.3VDC @ 1.5mA, sleep mode 2uA, detection mode 15uA

Anti-static: ESD IEC 61000-4-2 LEVEL 4 plus or minus 15KV overhead discharge

Ambient temperature: -20~60 °C / Less than RH 90%

Sensing area: 208 x 288 pixels

Pixel resolution: 256 grayscale values

Module size: 20.4 X 33.4 X 2.3 mm (except connector)

Interface: 8-pin connector, 1mm pitch, SPI

Approvals: CE, RoHS

Dimension

Shipping List

touch fingerprint sensor
