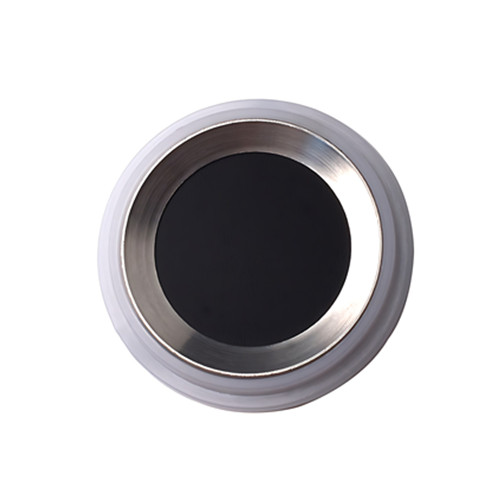

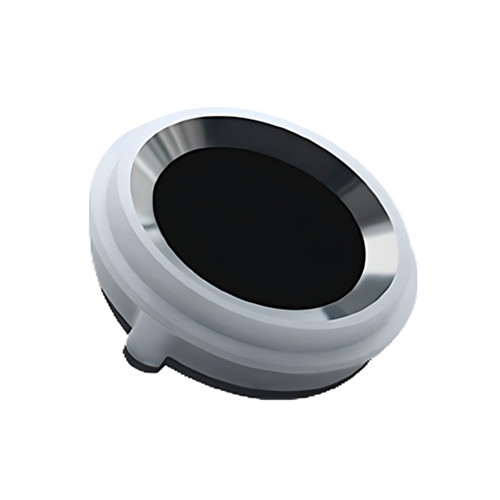

Arduino Fingerprint Scanner

Integrated design, compact and lightweight

Arduino fingerprint scanner ID1016C has small size, low power consumption, universal interface and high reliability. Press at any angle on the module, and the correctly registered fingers can pass the comparison, and can independently complete the functions of fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search. ID1016C provides development information such as complete communication protocol and instruction set.


CPU: ID812

Fingerprint Sensor: Capacitive

Fingerprint image size: 160*160 (pixel), 508DPI

Fingerprint registration capacity: The default is 200;

False Recognition Rate (FAR): Less than0.001% (security level is 3)

False rejection rate (FRR): Less than2% (security level is 3)

Alignment method: 1:N and 1:1 alignment;

Fingerprint template size: 1008 bytes Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

1:N comparison time (when 200 tokens are fully registered) Less than0.6 seconds;

Communication interface: UART, 3.3V-TTL level

Baud rate 9600, 19200, 38400, 57600, 115200 (bps)

Factory setting: 115200bps

Working voltage: vin Voltage: DC3.3V+/-10%

Working current: Less than40mA

Working environment: Working temperature: -10~60 degrees;

Relative humidity: 20%~80%


ID1016C application field: fingerprint access control machine, fingerprint attendance machine, fingerprint locker, fingerprint lock, fingerprint safe, intelligent control equipment, etc...

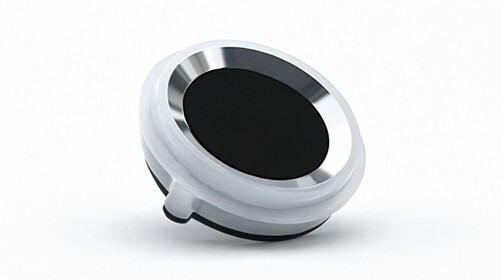

Arduino Fingerprint Scanner

Packing list

1.25mm-7PIN cable

Arduino fingerprint scanner
