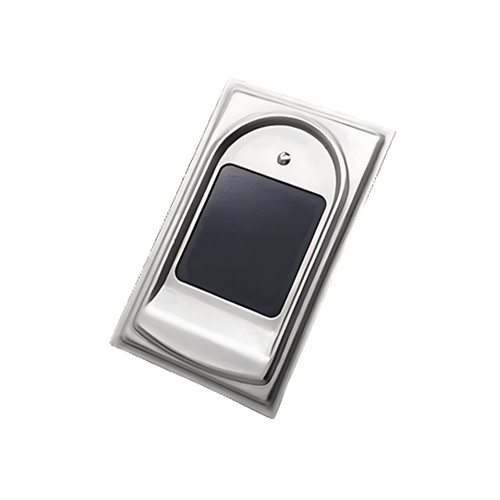

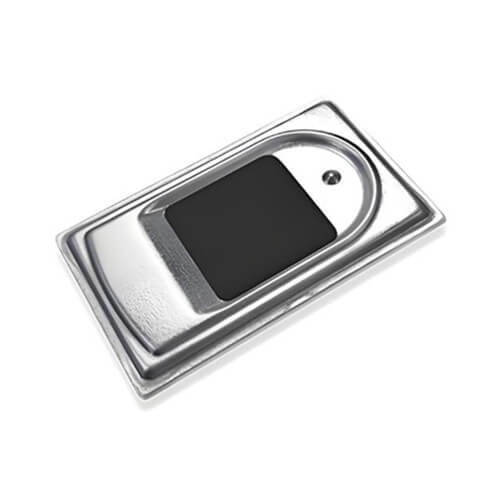

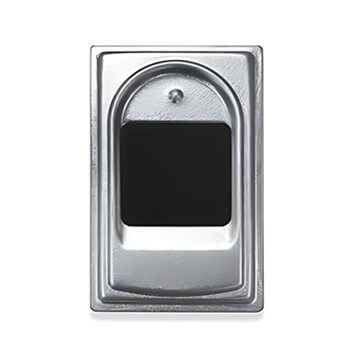

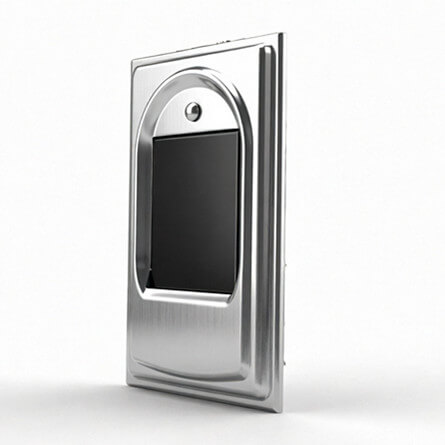

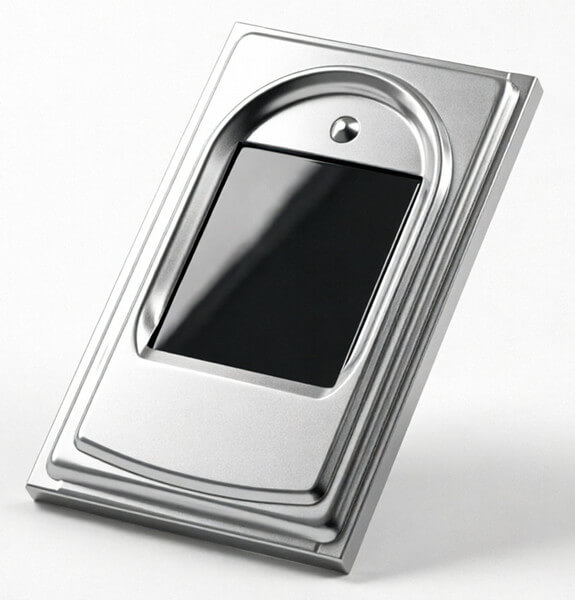

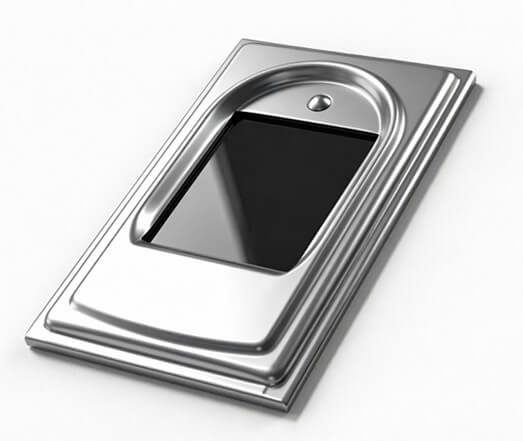

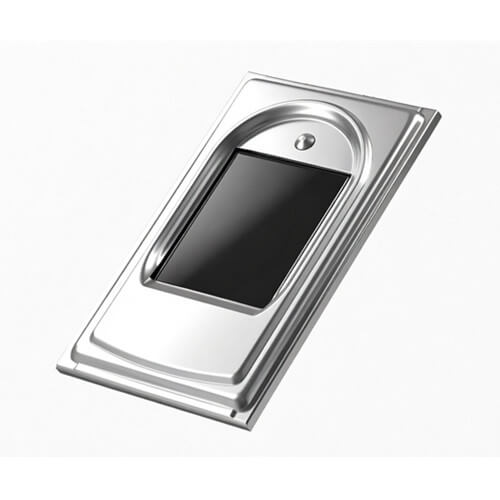

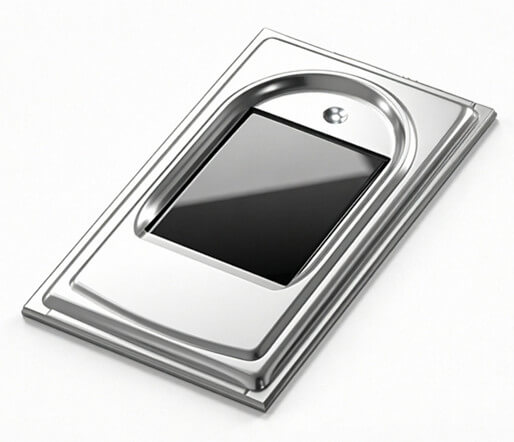

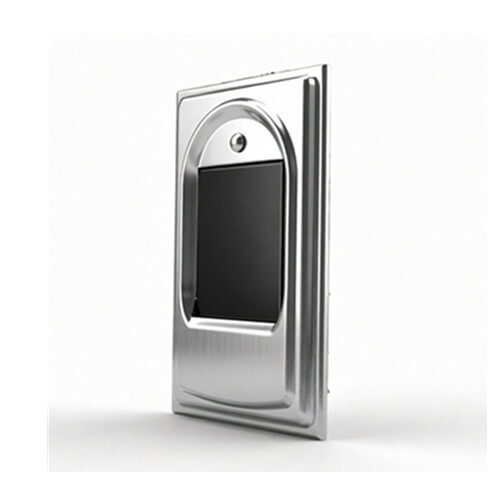

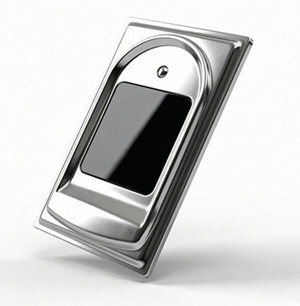

Capacitive fingerprint module

Using capacitive fingerprint sensor, clear imaging, fast acquisition speed

Capacitive fingerprint module IDWD1016F is a small-area embedded fingerprint module. It uses a dedicated high-performance ID811 processor as the core, adopts an integrated semiconductor sensor and chip design, runs IDworld high-performance fingerprint algorithm, and has small size and functionality. Low consumption, fast collection, strong adaptability to wet and dry fingers, and high anti-counterfeiting characteristics, and can be flexibly embedded in various terminal devices.


project description

Model: IDWD1016F

CPU: ID809/811

Fingerprint sensor: dpi: 508 pixels: 160*160

Fingerprint capacity: 80/200/500

FAR:Less than0.001% (Security Level is 3)

FRR:Less than2% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size: 1008 Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction timeLess than1 second 1: N comparison time (when 200 full registrations) Less than0.8 second

Communication interface: UART, 3.3V-TTL level

Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current:Less than40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%


IDWD1016F is widely used in fingerprint door locks, fingerprint safes, fingerprint access control and attendance, and other industries that require fingerprints for identity authentication and security control.


Capacitive fingerprint module

Packing list

1.0mm-6PIN cable

Capacitive fingerprint module
